Used Staging - Mobile
10m x 8m mobile trailer concert stage
- Good Used
- Staging, Drapes, Scrims and Barriers
- Exhibitions
- Festival
Specifications
| Condition | Good Used |
|---|---|
| Segment | Staging, Drapes, Scrims and Barriers |
| Warranty Source | Seller Warranty |
| Market | Exhibitions, Festival |
| Container | Other |
Description
’10m x 8m mobile trailer concert stage’
- Good condition.
- Price shown is for the entire trailer
- Artic based system, tractor unit needed to pull it
- Available from: 2025-08-13

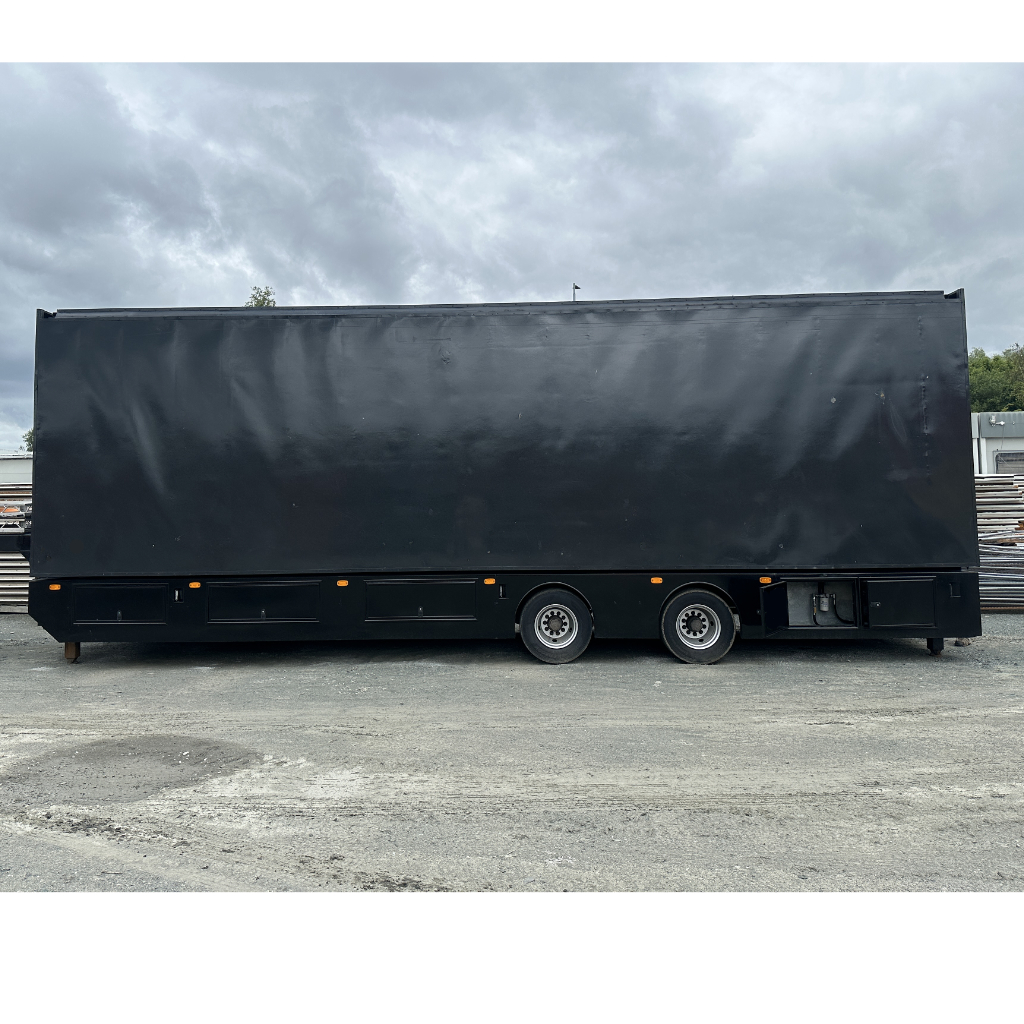

- Trailer Specifications:-
- Width: 8’-2” / 2.49m
- Length: 34’-2” / 10.41m
- Height 13’-6” / 4.12m
- Trailer’s weight: 21934lbs/ / 9949kg
- Static load on axles: 19934lbs / 9042kg
- Allowed load on cargo: 346lbs / 157kg
- Cargo space: 5’11”x8’-0”x32’0” (1515ft3) / 1.8x244x9.75m (42.82m3)

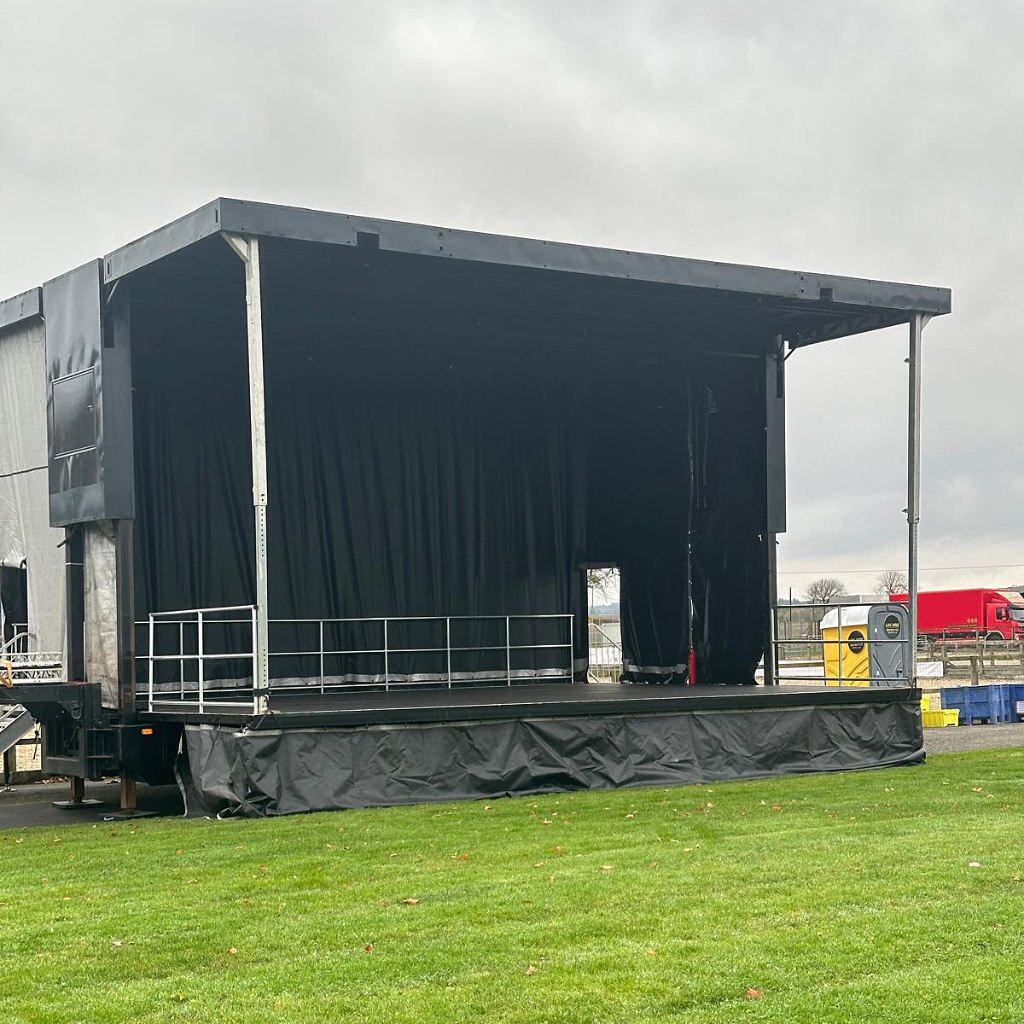

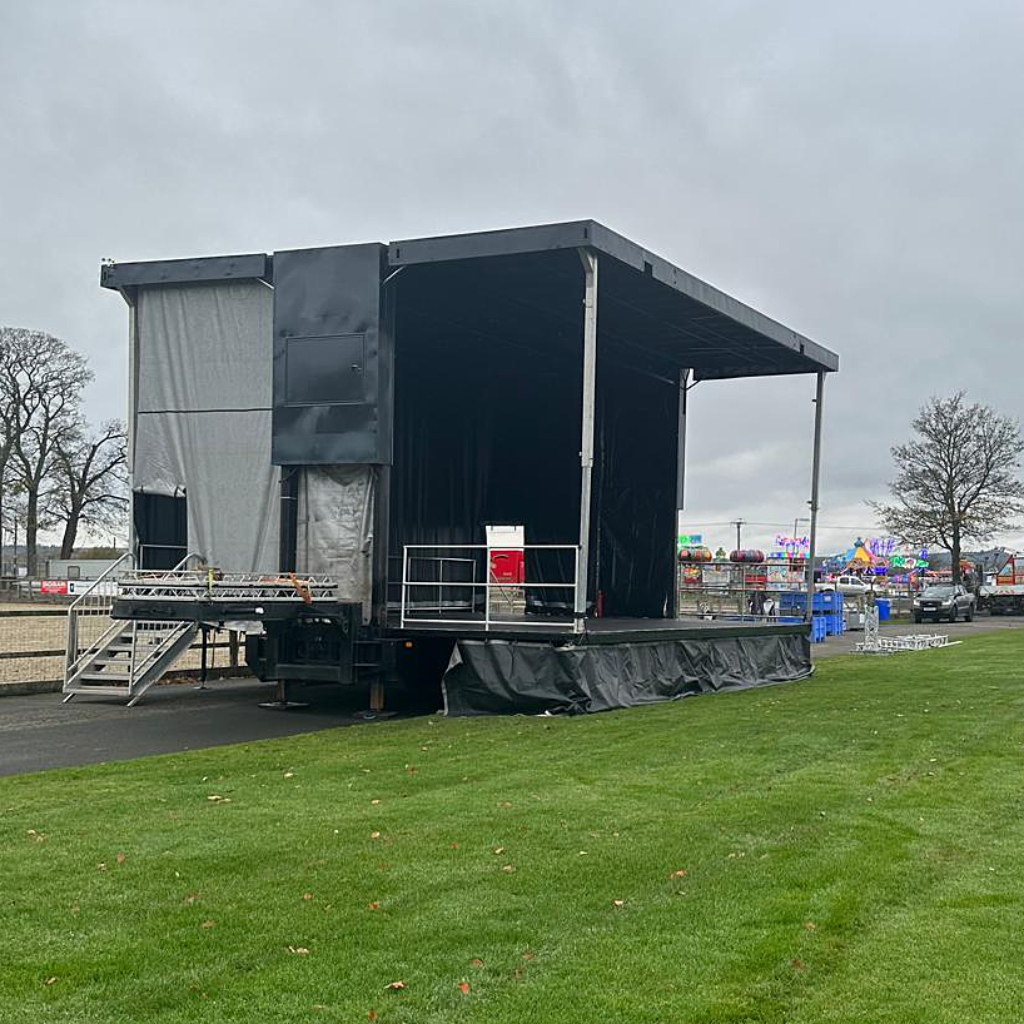

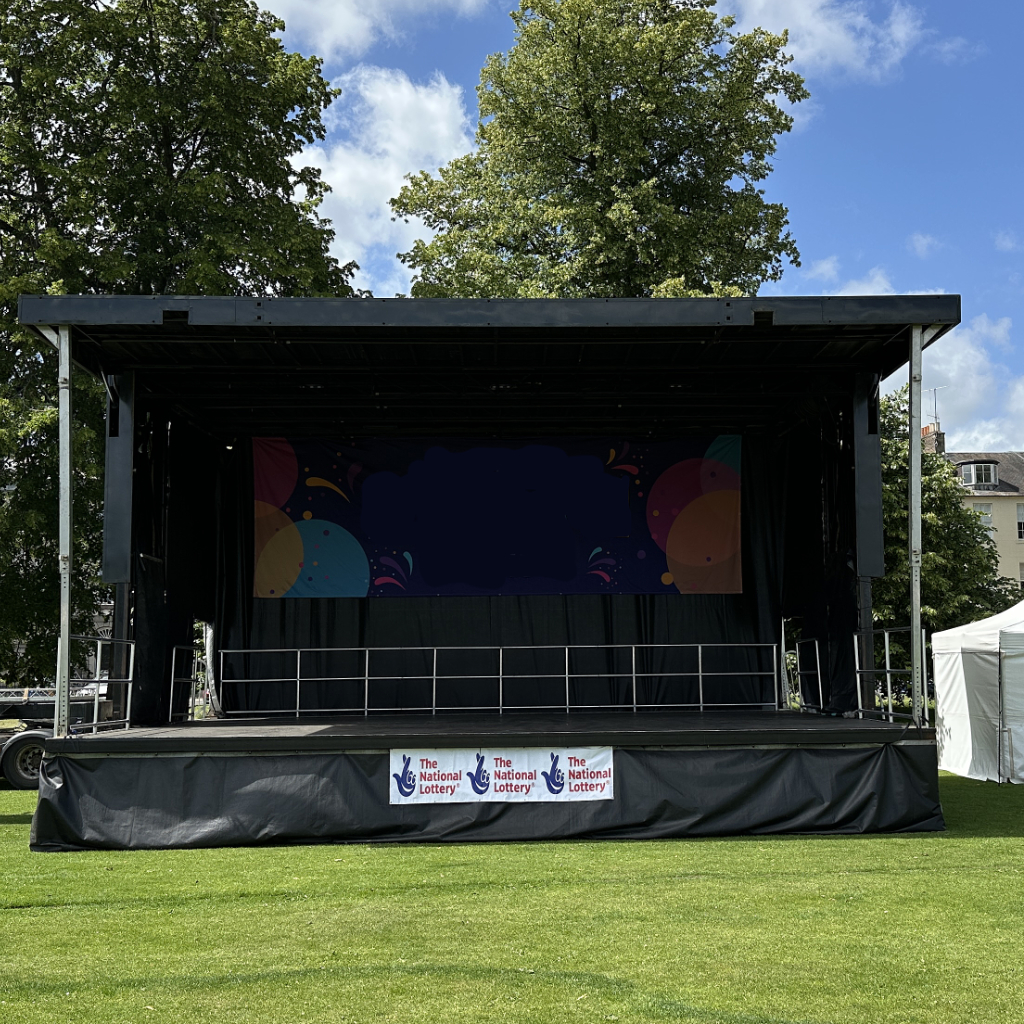

- OVERALL DIMENSIONS ( OPEN STAGE )
- Depth: 27’-6 (33’-6” with FOH) / 8.38m (10.21m with FOH)
- Width: 34’-2” (46’-2” with lateral supports) / 10.41m (14.07m with lateral supports)
- Height: 21’-0” to 22’-6” (23’-6” with blocks) / 6.4 to 6.86m (7.16m with blocs)
- STAGE DIMENSIONS
- Floor dimensions: 32’-0” x 24’-11” / 9.75 x 7.60m
- Floors height from ground: 3’6” to 5’-0” (6’-0” with blocks) / 1.07 to 1.52 (1.83 with blocks)
- Clearance under truss: 15’-6” / 4.72m
- Clearance under roof: 17’-6” to 17’9” / 5.33 to 5.41m
- OTHER SPECIFICATIONS
- Floor surface: Plywood on steel
- Floor capacity: 100lbs/ft2 / 5 kpa
- Roof surface: Fibreglass bound on steel
- Front supports: (FOH) 6’-0” / 1.83m
- Lateral supports: 6’-0” / 1.83m
- Maximum load/roof: 24000lbs / 10886kg *
- Maximum load/FOH: 750lbs / 340kg *
- Maximum load/inside supports: 500lbs / 227kg *
- Maximum load/lateral supports: 500lbs / 227kg *
- Maximum load/central truss: 7500lbs / 3402kg *
- Maximum load/end points: 1323lbs / 600kg *
- Wind load: 60 m/h / 97km/h)
- Uplift: 15lbs/ft2 / 75 kpa
- Motor: Gaz motor Honda GX120 5.5CV
- Set-up time: 5 hours – 4 technicians
- Transport: Tractor trailer truck with fifth wheel
- Canvas (back and sides): Vinagard 14 oz , black
- Canvas openings (doors): 3, 6’x8’ / 1.83 x 2.44m
- Canvas openings (wind traps): 0
- Skirting: Novathene TG , black
- Stairs: 36” / 914 mm width
