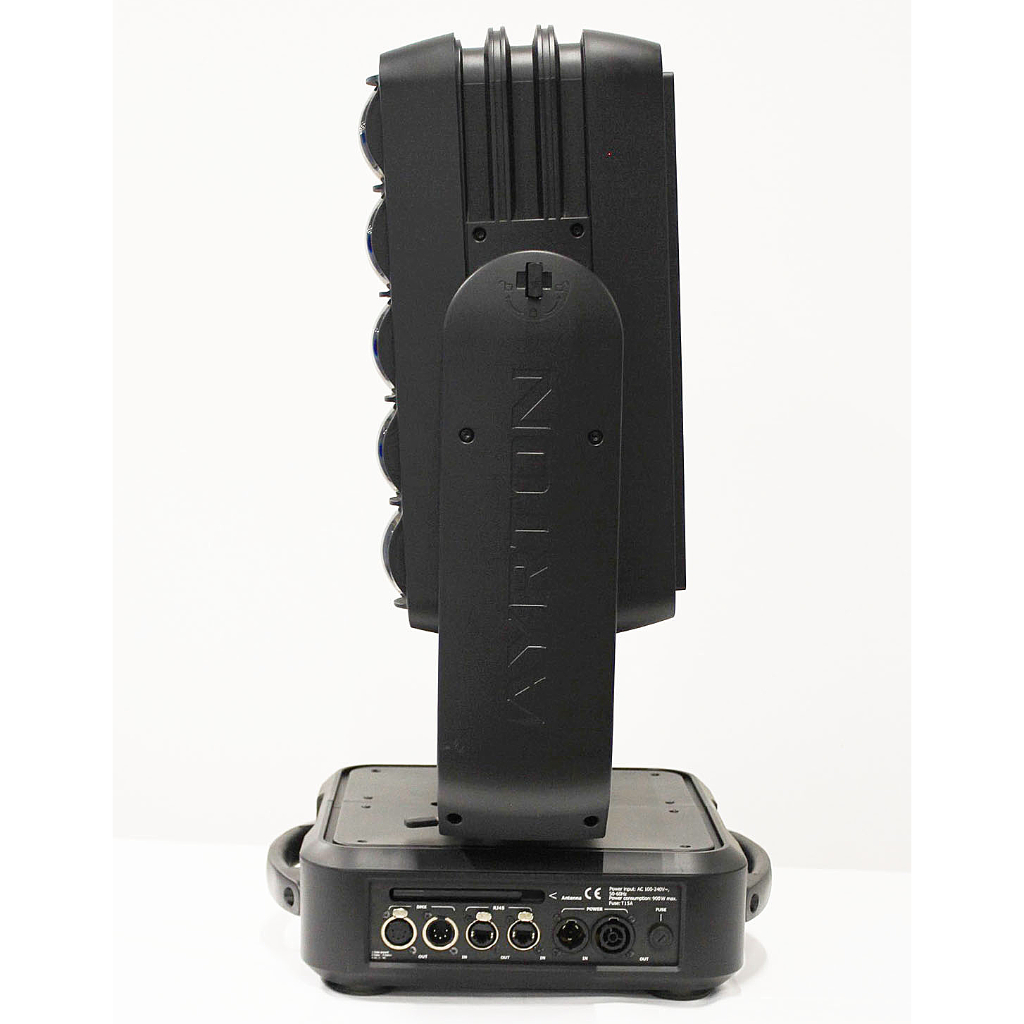

Ayrton MagicPanel-FX

Ayrton MAGICPANEL series

Used Ayrton MAGICPANEL series luminaires are a family of modular LED fixtures built around continuous rotation technology to produce a broad range of diverse visual effects. The series spans several models, including the MAGICPANEL 602, MAGICPANEL 800, MAGICPANEL FX and MAGICPANEL R, each offering distinct capabilities for demanding lighting applications. Scroll down to explore the second-hand Ayrton MAGICPANEL units currently available from verified sellers around the world. The Ayrton MAGICPANEL series comprises modular LED luminaires designed around continuous rotation to deliver a wide variety of visual effects. The MAGICPANEL 602 is a continuous-rotation moving head wash light rated IP20, featuring 36 individually controllable 15-watt LEDs arranged in multi-chip format using red, green, blue and white sources. Operating on the CMY additive colour principle, it can produce up to 4.2 billion colours and accepts between 18 and 160 DMX channels via DMX512, with RDM support for remote configuration. The MAGICPANEL R builds on the 602 with double continuous rotation on two axes and a 5x5 matrix of individually controlled LED sources. The MAGICPANEL FX is a multi-function descendant of the MAGICPANEL R, while the MAGICPANEL 800 similarly employs continuous rotation for broad visual effect capability.
