Used Trussing & Rigging
CM Lodestar 1 Ton Single Brake Motor 60′ Lift
- CM (Columbus McKinnon)
- Good
- Rigging
Specifications
| Brand | CM (Columbus McKinnon) |
|---|---|
| Condition | Good |
| Warranty | 21-Days |
| Packaging | Flightcase - Dual |
| Packaging included in Price | Yes - included in price |
Description

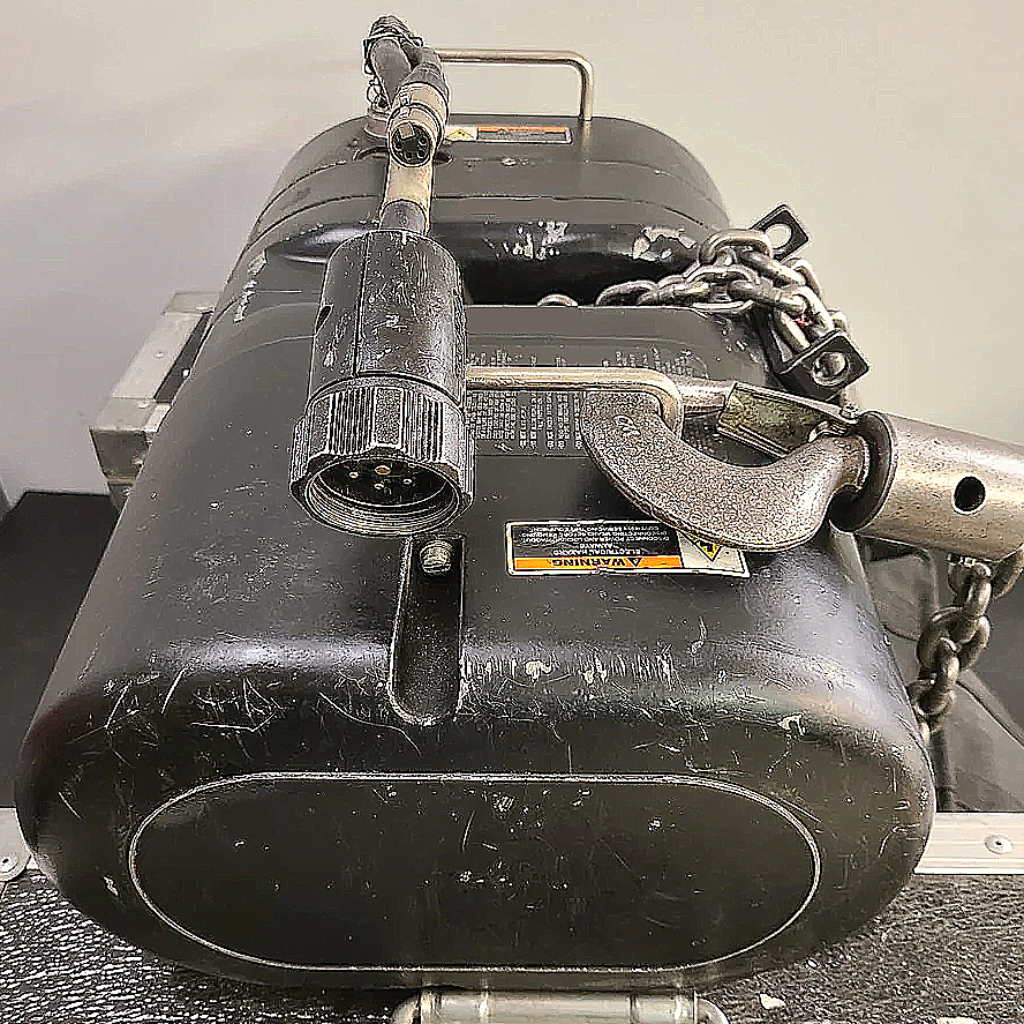

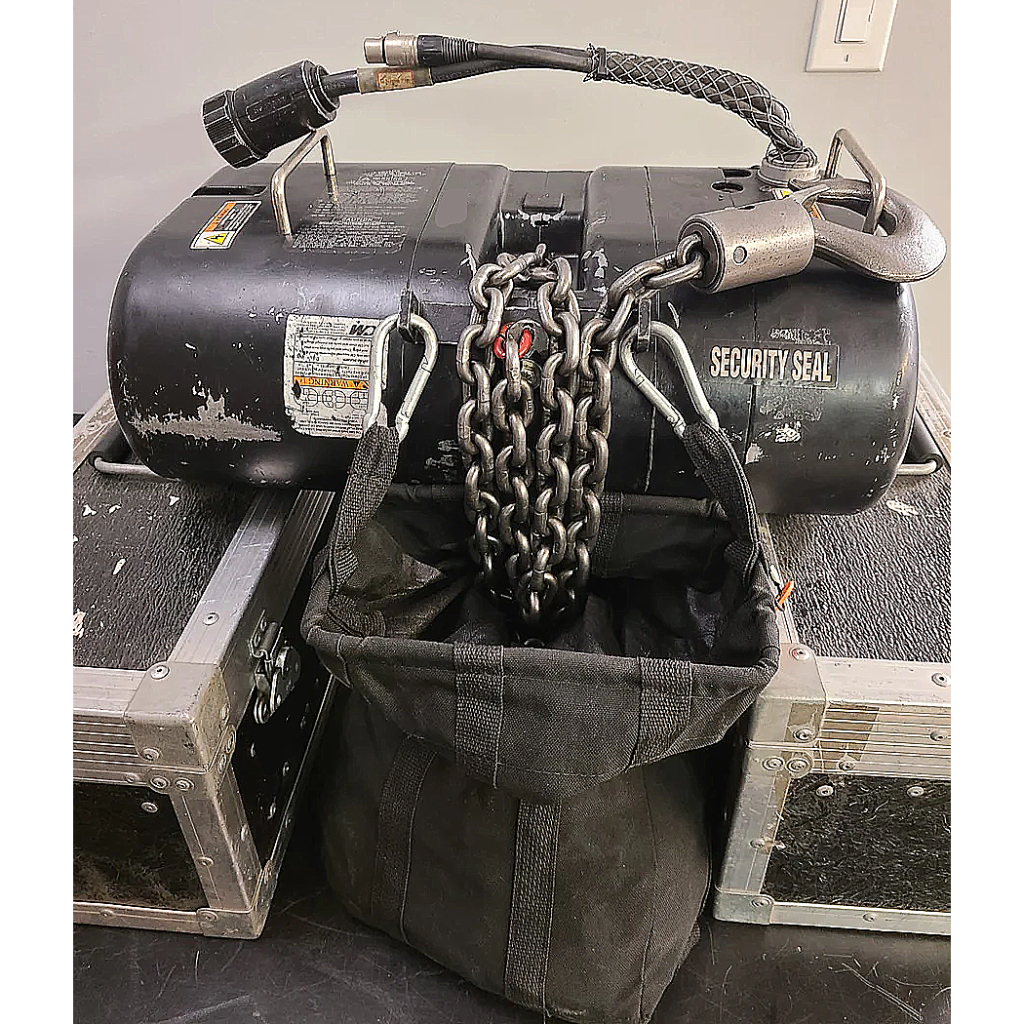

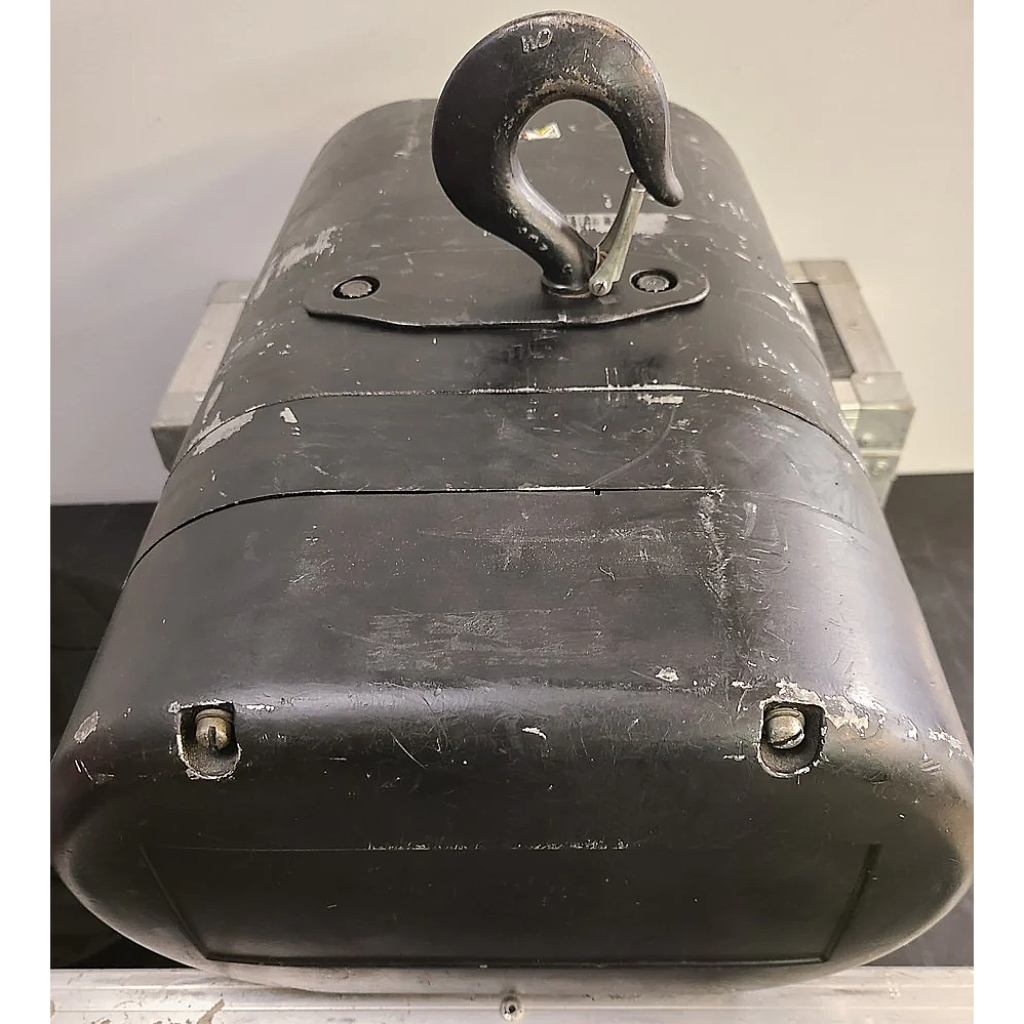

Used CM Lodestar 1 Ton Single Brake Motor 60′ Lift Set.
- Good condition
- Price shown is per piece
- Only sold in sets of 2
- Comes in dual flightcase
Manufacturer's Info
CM (Columbus McKinnon) Lodestar
CM (Columbus McKinnon) Lodestar
Main features and specification for CM (Columbus McKinnon) Lodestar:CM (Columbus McKinnon) Lodestar Classic
CM Lodestar Classic electric Chain Motor
- Capacities: 1/8 to 2 tons (Metric Rated)
- Lift: 60 ft. standard (other lifts available)
- Speeds: 5 to 100 F.P.M. at 60 Hz.
- Voltages: 1-phase and 3-phase available
- High-performance composite cord grips: Prevent water from entering the motor body at the pendant and power cord points of entry.
- Continuous Gaskets: Create a waterproof seal between the gearbox assembly and the back frame and motor covers.
- O-Rings on Lift Wheel Bearing: Prevent water from entering the motor body through the lift wheel opening.
- Standard AC brake is designed for a long service life.
- Lifetime grease-lubricated gear box ensures better wear and smooth operation. Heavy-duty-rated motors.
- Standard external chain guide helps extend chain life.
- Duty Cycle: H-4 duty rated for heavy-duty applications. 2M+ FEM class. 50% duty cycle or 300 on/off per hour.
- Low Voltage Control: 110 volt for long cable runs without voltage drop. 24 and 48 volt optional. Single-phase and three-phase also available.
- Overload Protector: Helps prevent lifting of dangerous overloads.
- Over-travel Prevention: Adjustable limit switch prevents load from over-travel in both up and down directions.
- Lightweight, Cast-Aluminum Housing: Durable and strong cast-aluminum housing is black powder coated for low visibility.
- Metric Rated
- Road Ready: Easy to stow and travel.
- Lifetime Warranty: The industry's best warranty against manufacturing and material defects.
CM (Columbus McKinnon) Lodestar
CM Lodestar electric chain motor
- Capacities: 1/8 to 2 tons
- Standard Lift: 60 feet (other lifts available)
- Speeds: 5 to 100 feet/min.
- Voltages: 1-phase and 3-phase
- 5 Pocket Lift Wheel improves chain wear & smooth lifting
- Clutch Outside Gear Train meets international standards
- Precision Helical Gearing for quieter operation
- Redesigned Control Panel for easier access & fuse installation
CM (Columbus McKinnon) Lodestar D8+
CM Lodestar D8+ electric chain motor
- Capacities: 125 to 1500 kg
- Standard Lift: 60 feet (other Lifts available)
- Speeds: 5 to 64 feet/min.
- Voltages: 3-phase
- Electro-Mechanical Double Brakes
- 5 Pocket Lift Wheel for quiet & smooth operation.
- 68 dB Operational Noise a result of the Double Brake System.
- Precision Machined Gears heat treated for strength and durability.
- Internal Chain Guide: PVC black coated for quieter operation.
- Low Voltage Control: 110 Volt for long cable runs without voltage drop. 24 & 48 Volt optional.
- Duty Cycle: H-4 duty rated for heavy duty application. 2M+ FEM class. 50% Duty Cycle or 300 on/off per hour.
- 10:1 Mechanical Design Factor
CM (Columbus McKinnon) Lodestar BGV-C1 Series
CM Lodestar BGV-C1 Series electric chain motor
- Capacities: 250 to 1000 kg
- Standard Lift: 60 feet (other lifts available)
- Speeds: 16 to 100 feet/min.
- Electro-Mechanical Double Brakes
- 5 Pocket Lift Wheel for quiet & smooth operation.
- 68 dB Operational Noise a result of the Double Brake System.
- Precision machined gears heat treated for strength and durability.
- Internal Chain Guide PVC black coated for quieter operation.
- Low Voltage Control 110 Volt for long cable runs without voltage drop. 24 & 48 Volt optional.
- Duty Cycle H-4 duty rated for heavy duty application. 2M+ FEM class. 50% Duty Cycle or 300 on/off per hour.
- 10:1 Mechanical Design Factor
- Underload Protecion with load cell installed.
- Modular Multi-Pin Conncetor with multi-wire shielded cable.
- 4 Position Limit Switch with active spring micro-switch.
- Built-In PLC for safety function monitoring, brake and limit switch integrity, load cell reading, overload and underload settings.
