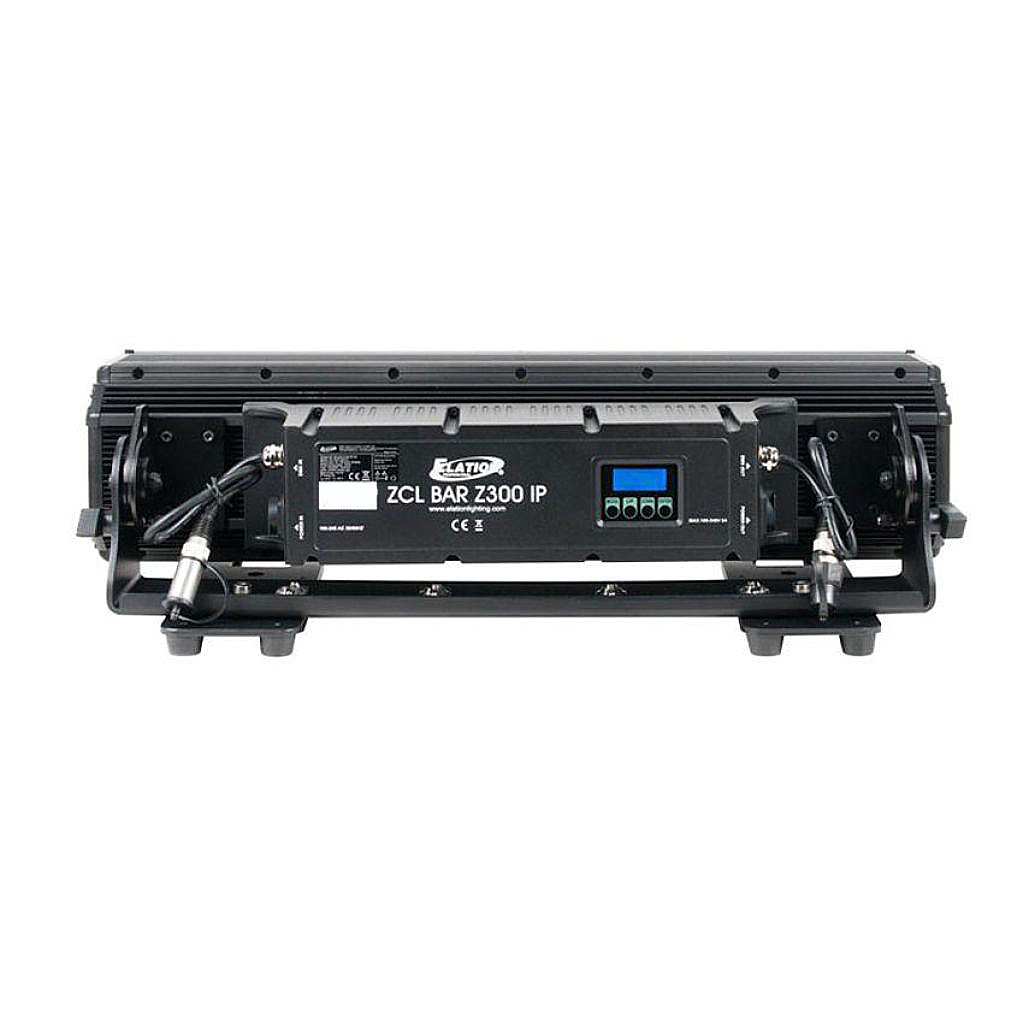

Elation ZCL BAR Z300IP

Description

Used Elation ZCL BAR Z300IP Lighting Fixtures.

• Almost like new, only a few were used for demo purposes, rest are in mint condition and still in their original packaging
• Price shown is per piece
• Included:
  • Glare Shield
  • Medium Frost
  • Heavy Frost
  • Locking IP65 Power to CEE 7/7 Cable

FEATURES

IP65 Rated Dust and Water Protection
Multi-Color LED Bar Effect Luminaire
5x 60W RGBW LEDs
Zooming Collimator Lens
Pixel Controlled LEDs
4° To 44° Motorized Zoom
Included 2 Frost Filters and Glare Shield
Quick Lock Mounting Options
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film

SOURCE

5x 60W RGBW Multi-Chip LEDs
4,452 Total Output Lumens
100,000 Hour Average Lamp Life*

PHOTOMETRIC DATA

8,500 LUX 791 FC @3m (9.8’) (Min. Zoom)
691 LUX 64 FC @3m (9.8’) (Max. Zoom)

EFFECTS

Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves

COLOR

RGBW Multi-Chip LEDs

CONTROL / CONNECTIONS

6 DMX Channel Modes (5 – 28)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
IP65 Rated 5-pin DMX Whip Cables
Locking Power Cable In/Out

SIZE / WEIGHT

Length: 670mm (26.4”)
Width: 158mm (6.2”)
Vertical Height: 298mm (11.7”)
Weight: 19.5 kg (43.0 lbs.)

ELECTRICAL / THERMAL

AC 100-240V – 50/60Hz
390W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
