Extron MGP 464

Extron MGP 464 / MGP 464 DI

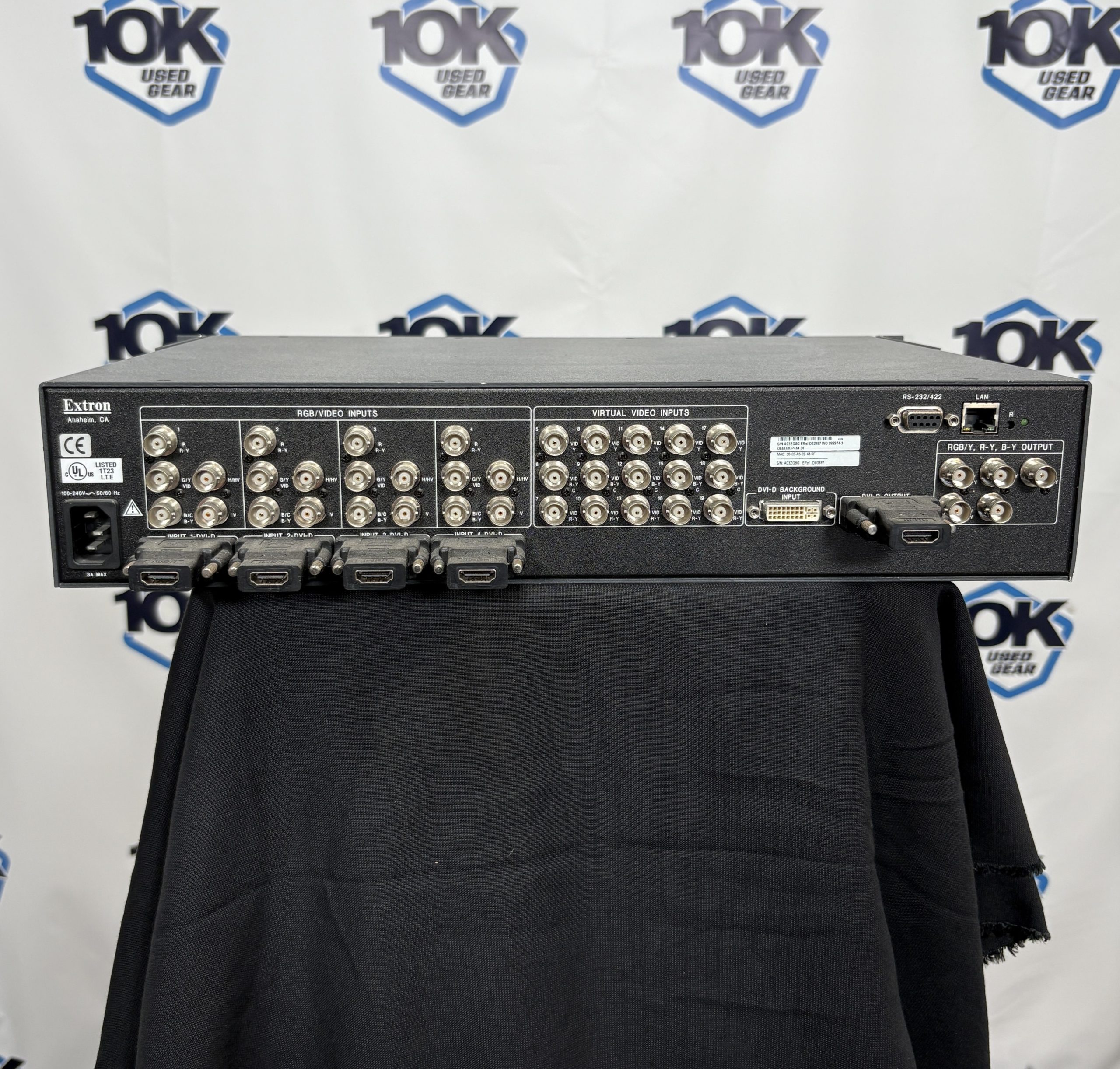

Used Extron MGP 464 / MGP 464 DI units are four-window multi-graphic processors capable of combining video, HDTV, and high-resolution RGB sources onto a single display, with flexible analog and digital output options to suit virtually any display device. The second-hand MGP 464 DI variant adds optional DVI or HD-SDI inputs for expanded source connectivity. Scroll down to see the used Extron MGP 464 listings currently available. The Extron MGP 464 / MGP 464 DI is a Four Window Multi-Graphic Processor that combines video, HDTV, and high-resolution RGB input sources into four independent windows on a single display. It accepts four universal analog video inputs on BNCs supporting RGBHV up to 1920x1200, component video up to 1080p/60 HDTV, S-video, and composite video, plus 15 virtual video inputs and a live background input on DVI. The unit simultaneously outputs analog RGB or HDTV component video signals alongside a digital DVI signal. The DI variant is available with four DVI inputs, or two DVI and two HD-SDI inputs compliant with SMPTE 292M and ITU-R BT.1120. Selectable output resolutions range from 640x480 up to 1920x1200, including HDTV 1080p/60. Picture-in-picture controls allow window positioning, sizing, zoom, and priority adjustment, while a Graphic Still Store feature lets users store screen captures or uploaded BMP graphics as themed background images.
