LDR (Luci della Ribalta) Xpress 26
- LDR (Luci della Ribalta)
- Excellent
- Lighting
Specifications
| Brand | LDR (Luci della Ribalta) |
|---|---|
| Condition | Excellent |
| Warranty | 21-Days |
Description

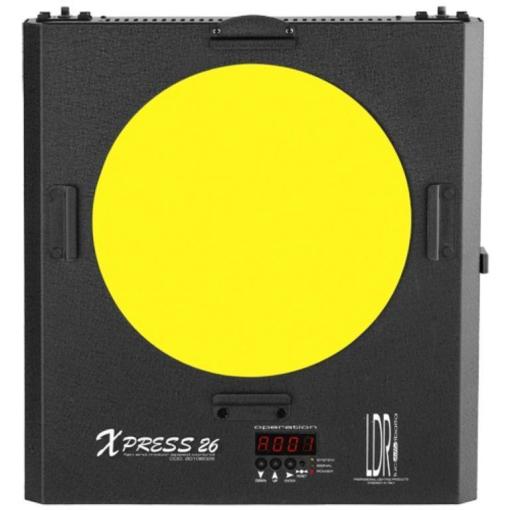

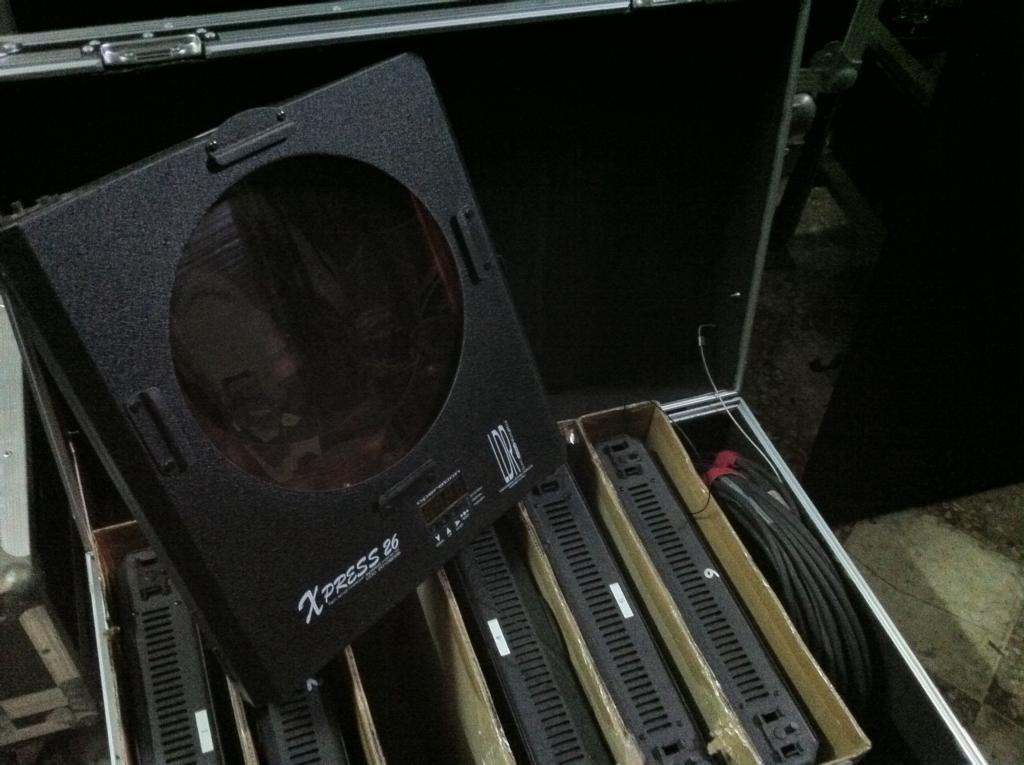

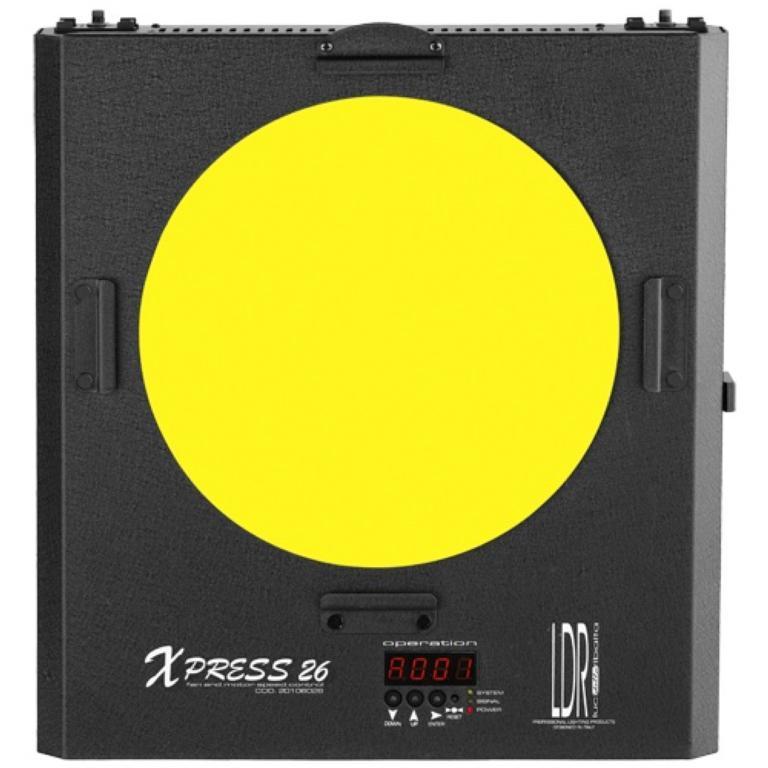

Used LDR (Luci della Ribalta) Xpress 26 colour scroller.
- Price is per piece
- For all six power supply and cables included
- Excellent condition
- Only sold in multiples
The Xpress 26 is delivered with 21-colour LEE filter gel string, 313x313mm (12.32×12.32 in) rear mounting plate and steel safety cable. It also features 4 front attachments for a rotating barndoor, available as an optional accessory.
A large selection of standard and customized rear mounting plates is available on request.
SPECIFICATIONS
> Lense diameter: 270 mm
> Dimensions: 65 x 390 x 410 mm
> Packed weight: 4,0 kg
Manufacturer's Info
LDR Xpress 26 dmx/rdm
LDR Xpress 26
Main features and specification for LDR Xpress 26:- Construction: sturdy aluminium housing
- Paint/Finish: black epoxy powder paint
- Rear mounting plate: 313x313mm – 12,32X12,32in, included
- Barndoor slots: 4, to accept a 313x313mm / 12,32x12,32in plate
- Safety cable: black, 60cm / 23 5/8in, supplied with the scroller
- Front opening dimensions: ø270mm – 10,62in
- DC power input: 24 V DC
- Power consumption: 13 W
- Current requirement: 0,7 amps (24V DC)
- Gel string capacity: 8, 11,16 and 21 frames. At power on, the unit automatically detects the number of frames mounted
- Gel string movement: step or continuous mode; the scroll speed can be set on the unit or remotely using the optional Speed channel.
- Scroll speed: min. 3,2 sec (head to tail, 21 frames)
- Gel string cooling system: double fan with 5 preset variable speeds or remotely controlled using a dedicated channel
- Motor: 2 DC servo motors directly fixed to the rollers (NO GEAR BOX)
- DMX/Power in: XLR 4-pin male - DMX 512 and 24V DC power
- DMX/Power out: XLR 4-pin female - DMX 512 and 24V DC power
- Daisy chaining: up to 6 units per power distribution unit (PDU6)
- LED status indicators: Red = power. Green = system, Yellow = signal
- DMX channels: min. 1, up to 4 more channels required if remote selection of Reset, Scroll Speed, Fan Speed or Operational Modes are used.
- Operational modes: continuous or step, selectable by pressing the UP and DOWN buttons
- Head + tail colour filter size: 706mm (W) x 281mm (H) – 27,79in (W) x 11,06in (H)
- Central frames col. filter size: 416mm (W) x 281mm (H) – 16,37in (W) x 11,06in (H)
- DMX power/control cable not supplied. High quality shielded twist pair type cable with XLR-4 pin connectors are accessories
- Net/packed weight: 3,4 kg / 4,0 kg - 7,50lb / 8,82lb
- Packed volume: 0.02m3 - 0,07in3
