MA Lighting NPU

MA Lighting MA NPU

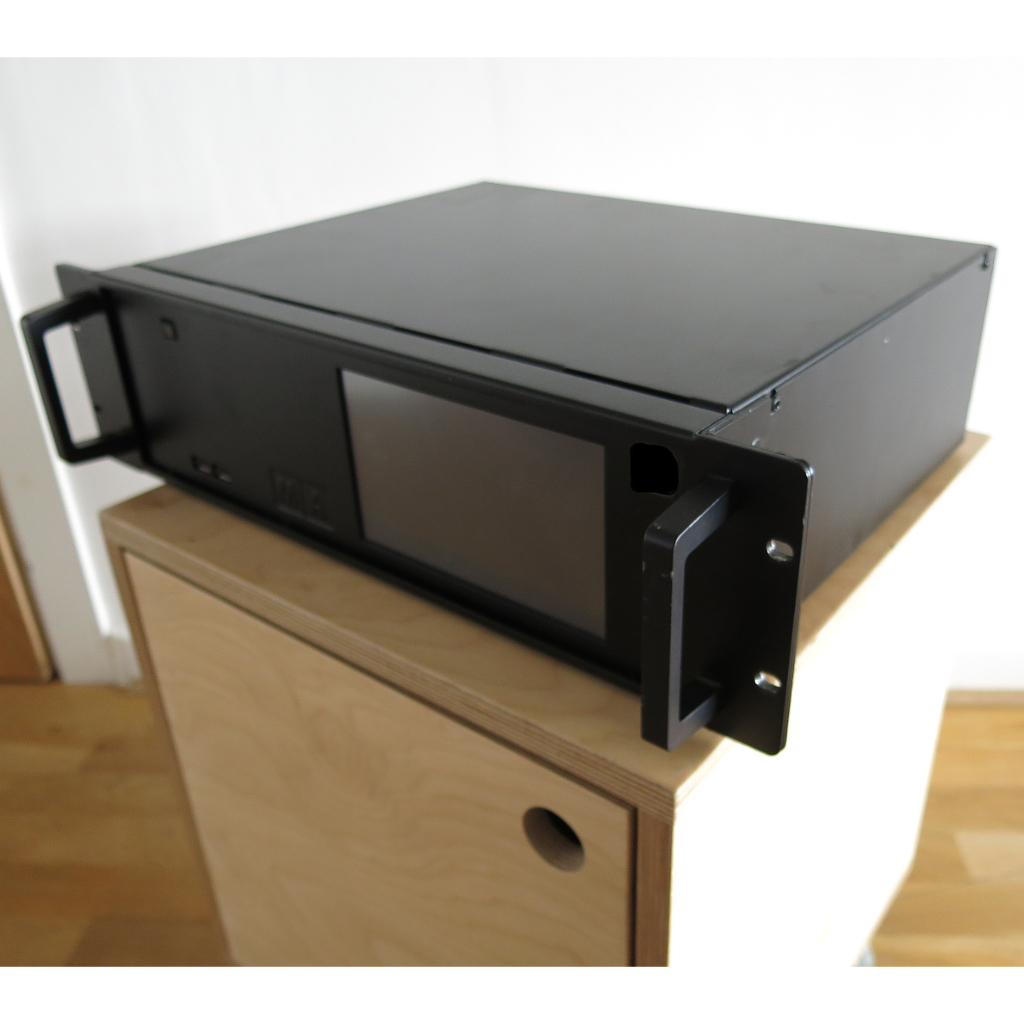

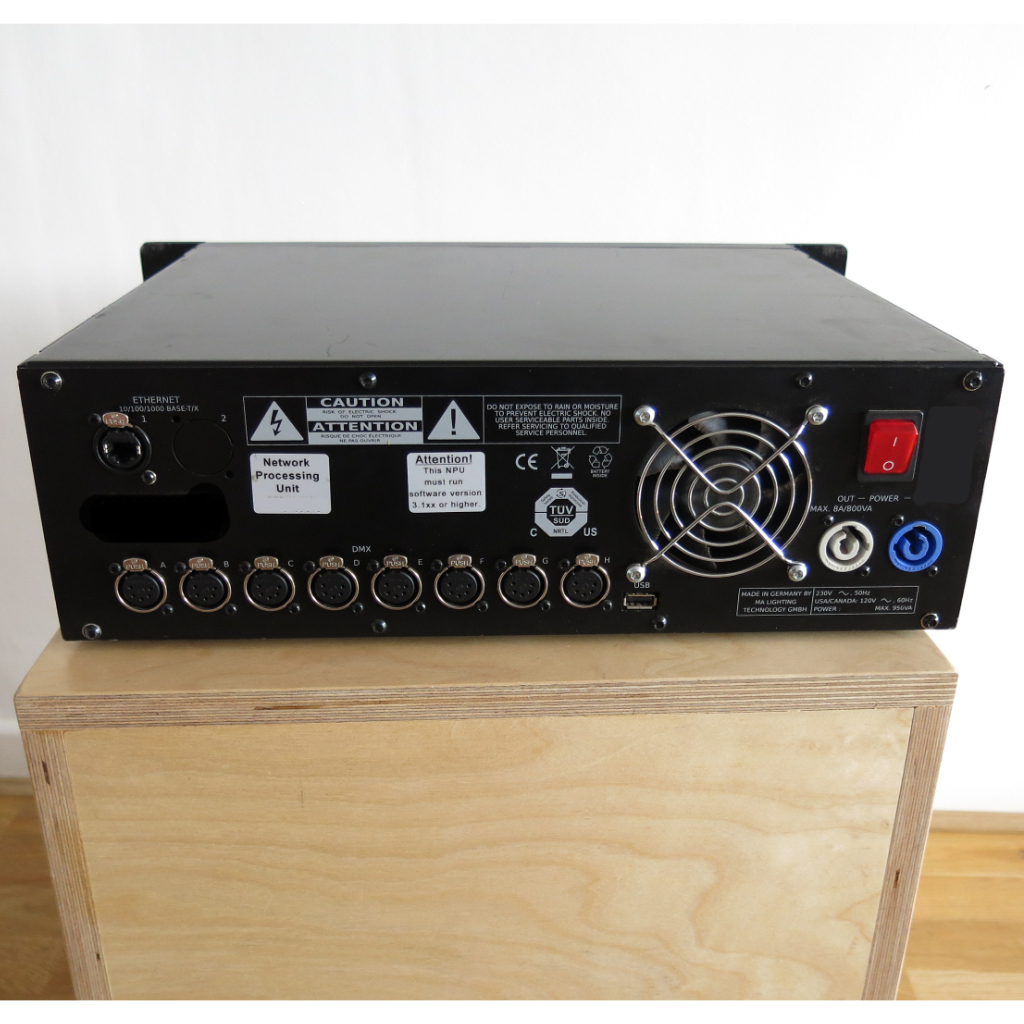

Used MA Lighting MA NPU units offer the same processing performance and efficiency as grandMA2 consoles, functioning as a Network Processing Unit that links Ethernet to DMX-controlled devices and handles real-time calculation for up to 65,536 parameters across up to 256 DMX universes. Browse the second-hand MA NPU listings currently available and scroll down to find the right unit for your system. The MA Lighting MA NPU is a Network Processing Unit designed for use within grandMA2 systems, uniting calculation power across the network and offering the same performance as grandMA2 consoles. It handles 4,096 HTP/LTP parameters and supports real-time calculation for up to 65,536 parameters across up to 256 DMX universes. Eight XLR 5-pin DMX connectors on the rear can be configured as inputs or outputs, while a single etherCON connector, three USB 2.0 ports, powerCON in and out, and a 7-inch internal command touchscreen complete the connectivity. The MA NPU converts incoming Ethernet data into DMX data for decentralised networks, can be shared across multiple grandMA2 consoles, and provides a redundant mode of operation without requiring additional DMX mergers.
