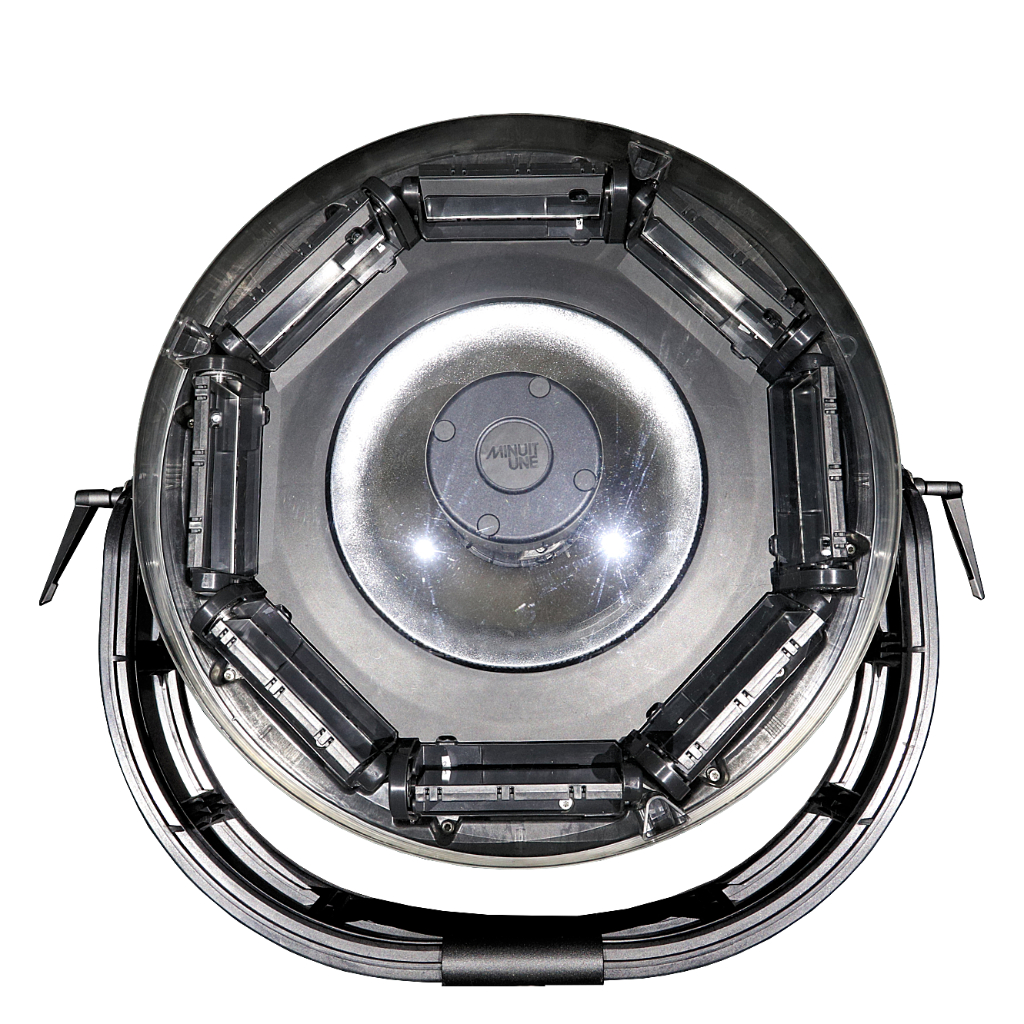

Minuit Une IVL Photon

3 MAIN OUTPUTS

Frost side of the 8 tilts

 The decorative output

• A very smooth diffused output
• Adjustable at 180° – wide coverage
• From frost to mirror in 0,25sec
• 4 000 lux at the exit
• DMX control: tilt parameters on the console
• ON for tilt values between 0% to 50%

Mirror side of the 8 tilts

The immersive output

• Wide coverage & directive perspectives
• 45° aperture by tilt
• Calibrated for immersion in 500 to 5000 people venues
• DMX control: tilt parameters on the console
• ON  for tilt values between 50% and 100%

Moving Core

 The creative punch

• A concentrated and directive frosted output with a variable diameter of diffusion
• Create a powerful ring of light from an audience perspective
• 20 000 lux at the exit
• DMX control: zoom parameter on the console
• OFF for zoom values between 0% to 30%
• ON for zoom values between 30% to 100%.

STANDARD DAILY-USE

Easy to deploy and maintain

• class 3R
• adjustable york
• 16 kg
• 48cm diameter
• <200W consumption
• 60 DMX channels
• LCD color screen
• RDM
• micro-SD card (software update)
• low cleaning
• very reliable
• long lifetime  >10 000 hours
• easy to repair (modular conception)

Class 3R

• IVL Photon is a laser-based lighting as safe as LED: it can be used in unsupervised areas according to the international standard (IEC 60825-3), without permits or specific training, and also variance-free in the USA.

Modular conception

The IVL Photon has been designed with a modular conception: the fixture is subdivided into smaller parts, the modules, which can be independently replaced. Each module is designed to be “plug & play” when replaced.

• Save time: most of the repair operations are very fast, safe and easy. Replace the old module with the new one in less than 10 minutes.
• Increase the lifetime of your fixture: the easier it is to repair, the more sustainable it is.
• Save cost: instead of having spare fixtures with you (on tour for instance), bring the module suitcase with you.
