Unilumin P2.6 Curve Indoor Led Display (42sqm – 168panel)

Description

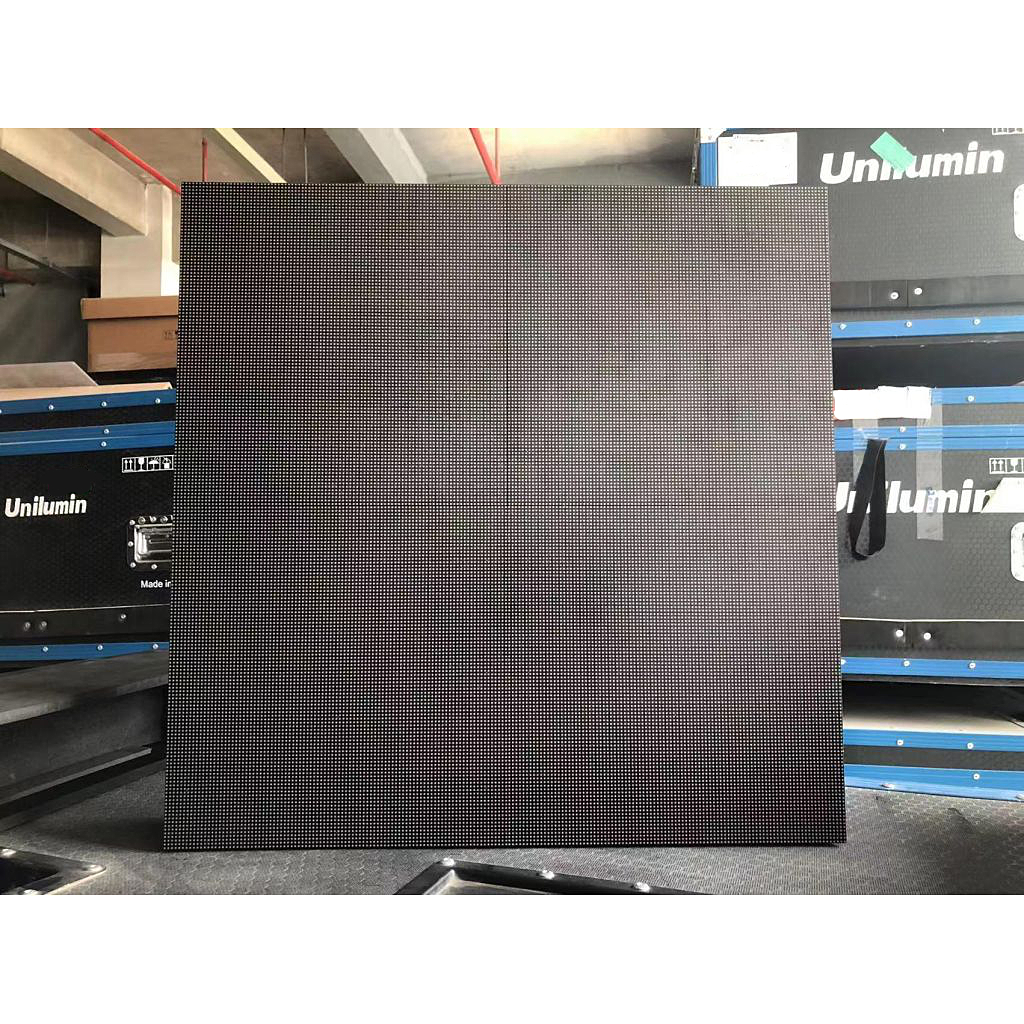

Unilumin P2.6 Curve Indoor LED Display (42sqm – 168panel).

• Not used
• 2021
• Total area 42 sqm (168 panels)
• The price shown is for the complete LED display
• Chapter 2121 Black Country Star
• MBI5252
• Refresh 3840Hz

Specs:

500×500 indoor rear
Die-cast aluminum LED display unit
Pixel pitch 2.6mm
LED Type: SMD
LED configuration: 1 red, 1 green, 1 blue
Brightness: 1000cd/m²
Pixels per panel: 192×192 dots
Pixel density: 147,456 pixels/m²
Weight 9 kg/panel
Module size: W250mm×H250mm
Cabinet size W500mm×H500mm×D90.6mm
Aspect ratio: 1:1 Area 0.25 m²
Recommended viewing distance: ≥2.6 m
Material Die-cast aluminium
Environment: Indoor
Protection class IP30
Working temperature/humidity: -10℃~+45℃/10~80%RH
Storage temperature/humidity -20℃~+55℃/10~85%RH
Maintenance: rear curve (outside) -3°~+10° (inside)
Gap Module: Seamless
Border width none
Horizontal viewing angle: +/-70°
Vertical viewing angle +/-60°
Color temperature: 2000-9300K
4.4 trillion adjustable colors
Brightness Control: Manual/Auto
Contrast ratio 3000:1
Input power <max>: 120W/panel
Input power <Typical> 40W/panel
Drive mode: constant current drive
Input voltage 100~240VAC
Input power frequency: 50~60Hz
Input signal DVI/HDMI/VGA/SDI/DP/AV/S-Video, etc.
Control Input Type: USB
Calibration: Supports luminance and chrominance
Noise: No fan operation
LED life ≥ 100,000 hours
Standard installation configuration: fixed, floor, hanging
Professional Services: Design, Configuration, Installation and Service Available
Data interconnection: CAT5 cable; multimode fiber; single mode fiber
