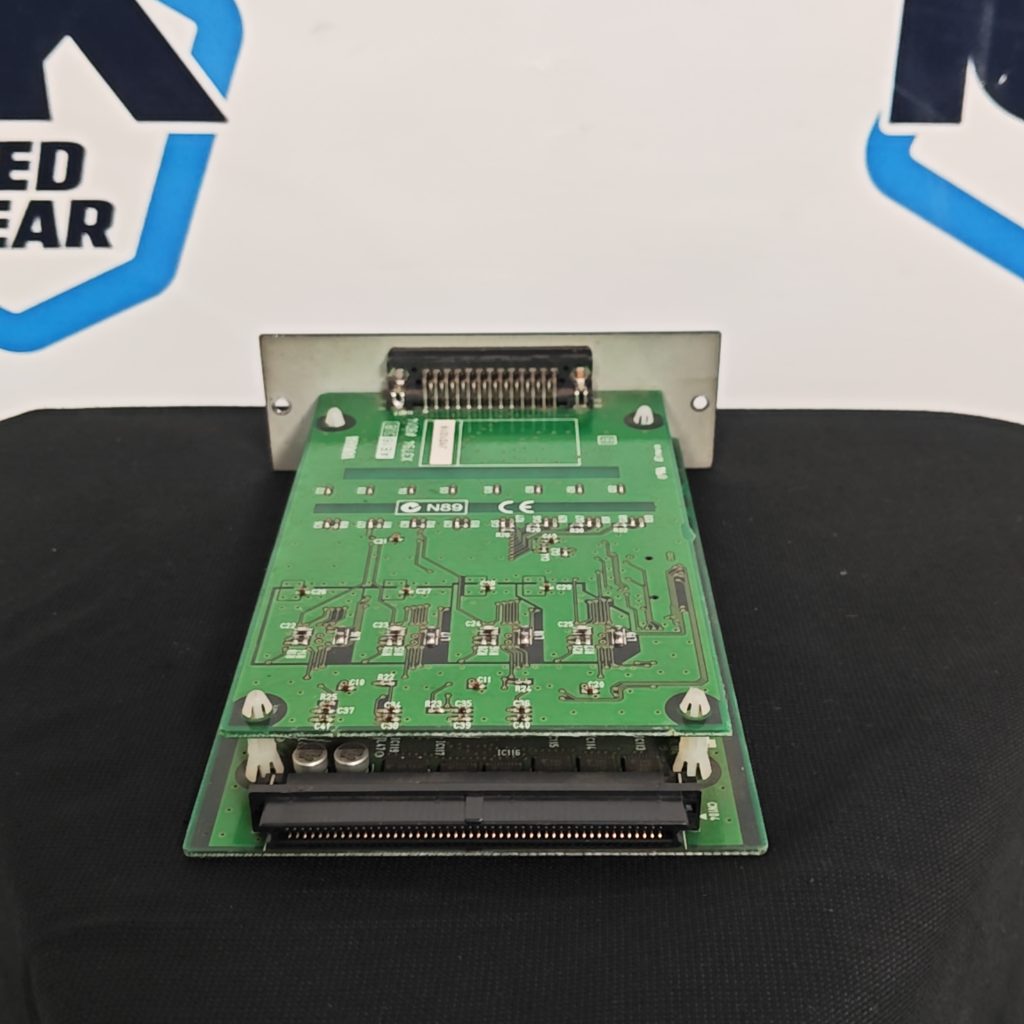

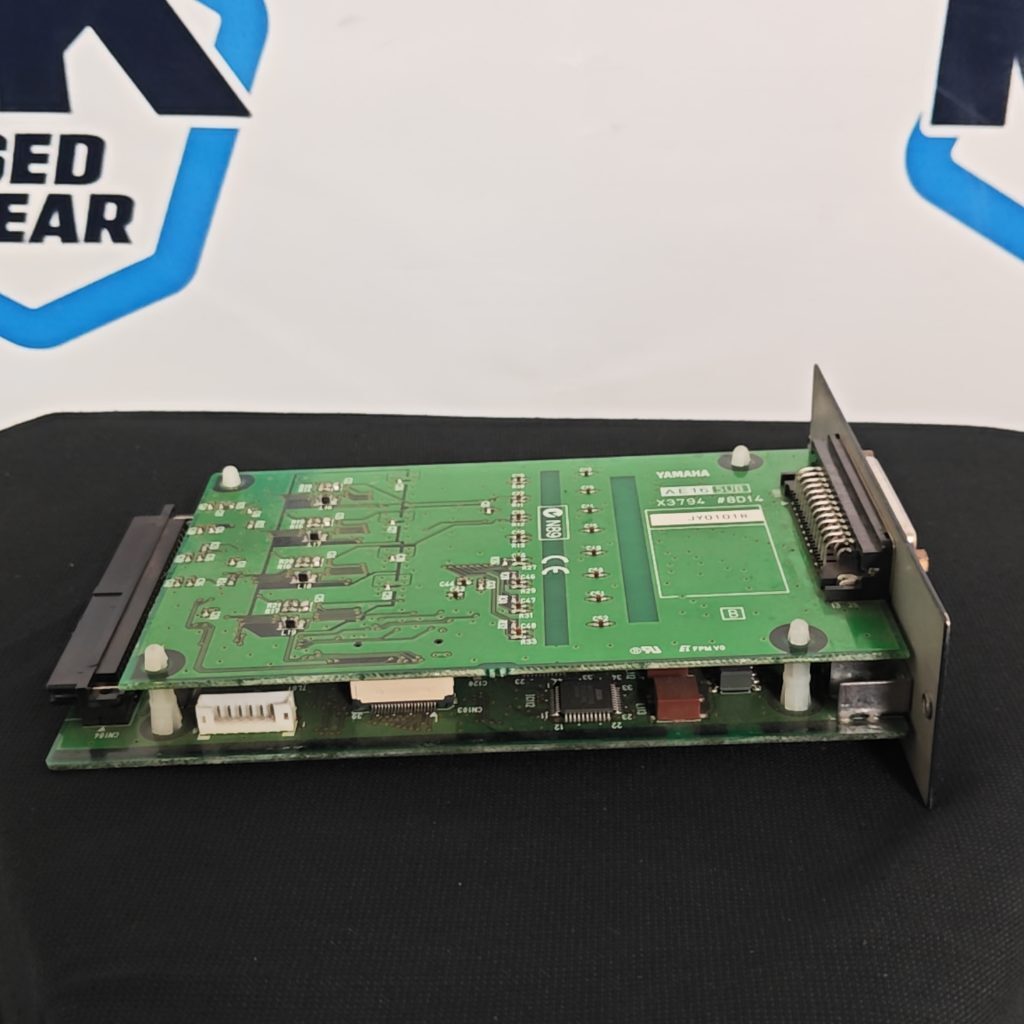

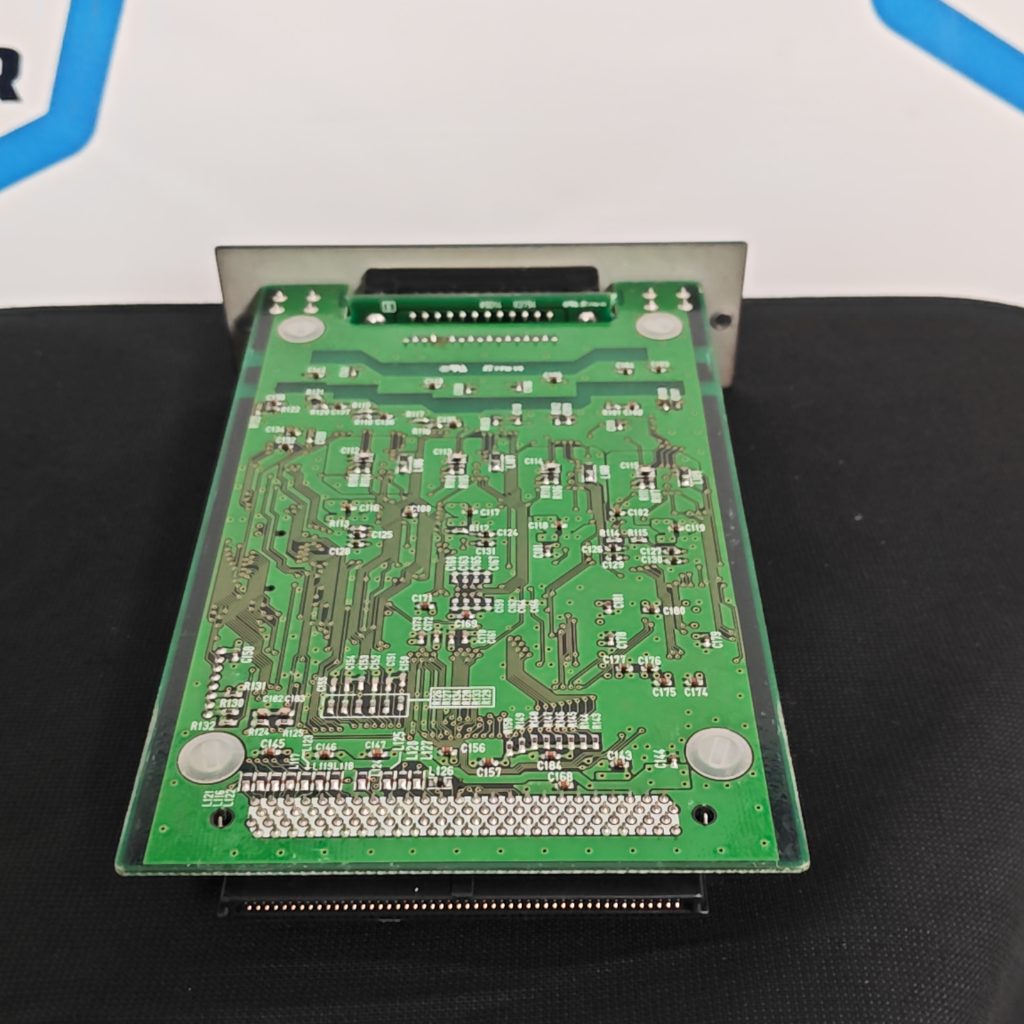

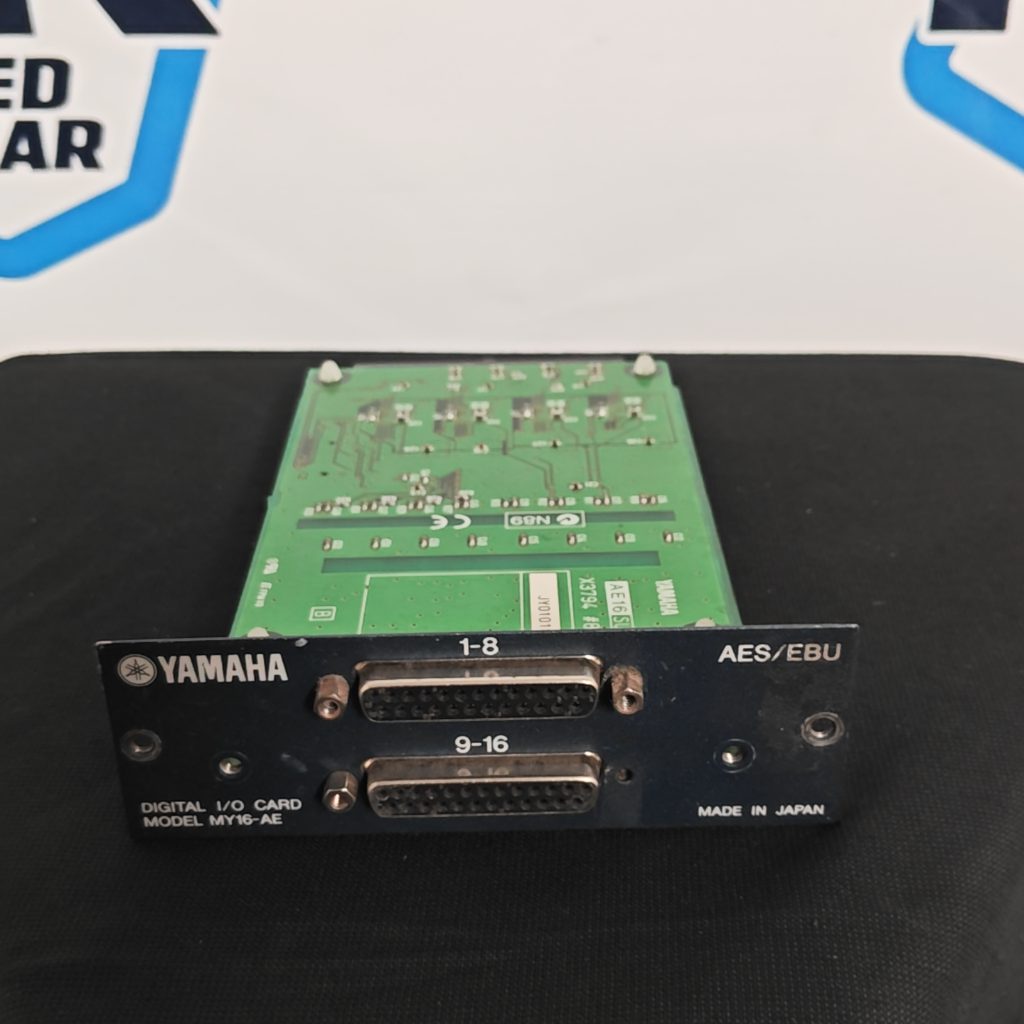

Yamaha MY16AE 16-Channel AES3 Card for Yamaha Console

Yamaha MY16 Series

Used Yamaha MY16 Series Mini-YGDAI expansion cards bring a wide range of I/O and processing capabilities to compatible Yamaha digital mixing consoles, processors and power amplifiers, with individual cards covering formats including ADAT, AES/EBU, MADI and TDIF. Buying second-hand is a cost-effective way to expand an existing Yamaha system. Browse the used MY16 Series listings available on 10K Used by scrolling down. The Yamaha MY16 Series comprises Mini-YGDAI expansion cards designed to add I/O in a variety of audio and network formats to Yamaha digital consoles, processors and power amplifiers fitted with compatible card slots. The MY16-AT provides a 16-in/16-out ADAT interface at 24-bit resolution (8-in/8-out at 96kHz) via four optical connectors. The MY16-AE offers a 16-in/16-out AES/EBU interface at 24-bit (8-in/8-out at 96kHz) using two D-sub 25-pin connectors. The MY16-TD delivers a 16-in/16-out TDIF-1 (TASCAM) interface at 24-bit (8-in/8-out at 96kHz) also via two D-sub 25-pin connectors. The MY16-MD64 adds 16 channels of MADI I/O, expandable to up to 64-in/64-out with MY16-EX expansion cards, and is suited to multi-room production, broadcast and large live sound applications. The MY16-CII is a CobraNet network expansion card for compatible professional audio equipment. MY16 cards can also facilitate the addition of LAKE processing and automatic mixing functions.
