Yestech P3.9mm 40sqm Magic stage Indoor LED Panel

Description

‘Yestech P3.9mm 40sqm Magic stage Indoor LED Panel’ video wall package

• Good condition.
• Price shown is for the package:-

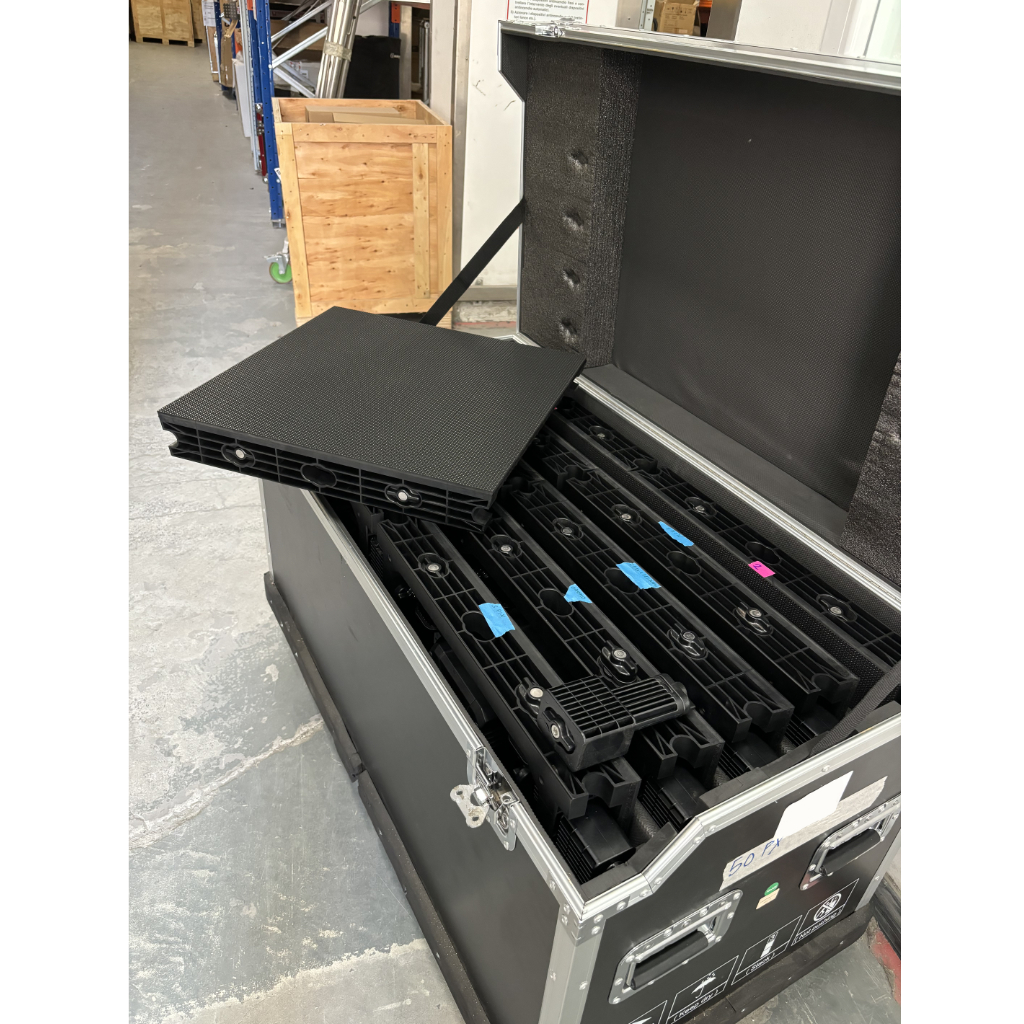

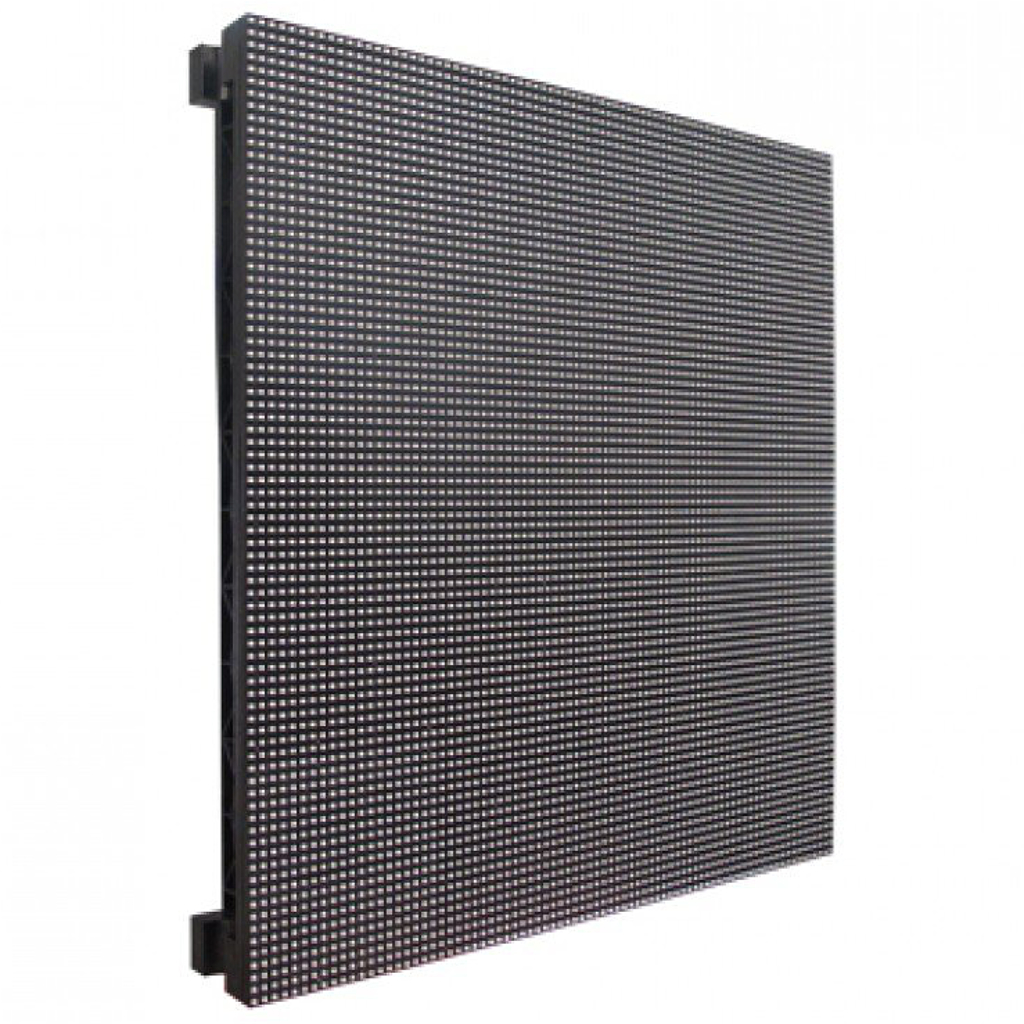

  • 100x 500x500mm Panles
  • 40x MG11 Right angle display
  • 10x MG12 Sector Display
  • 10x MG13 Triangle display

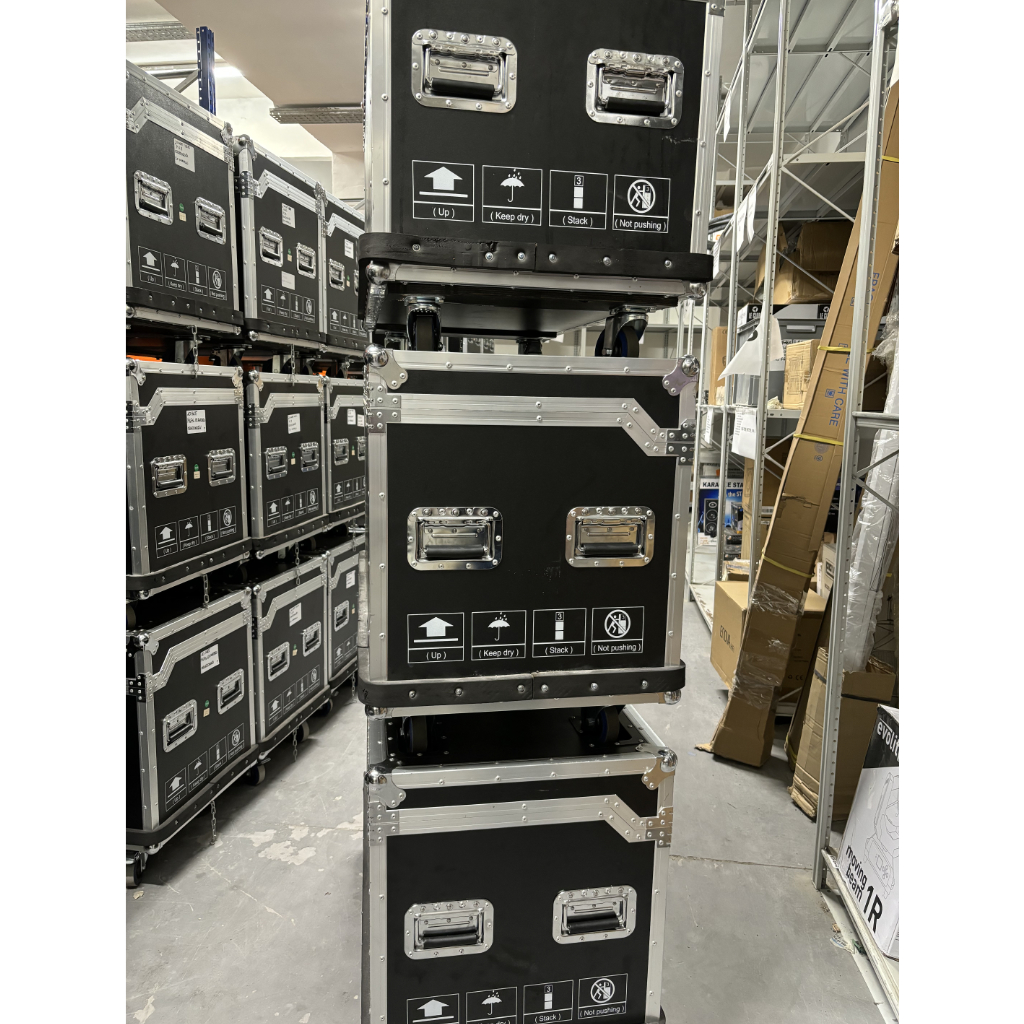

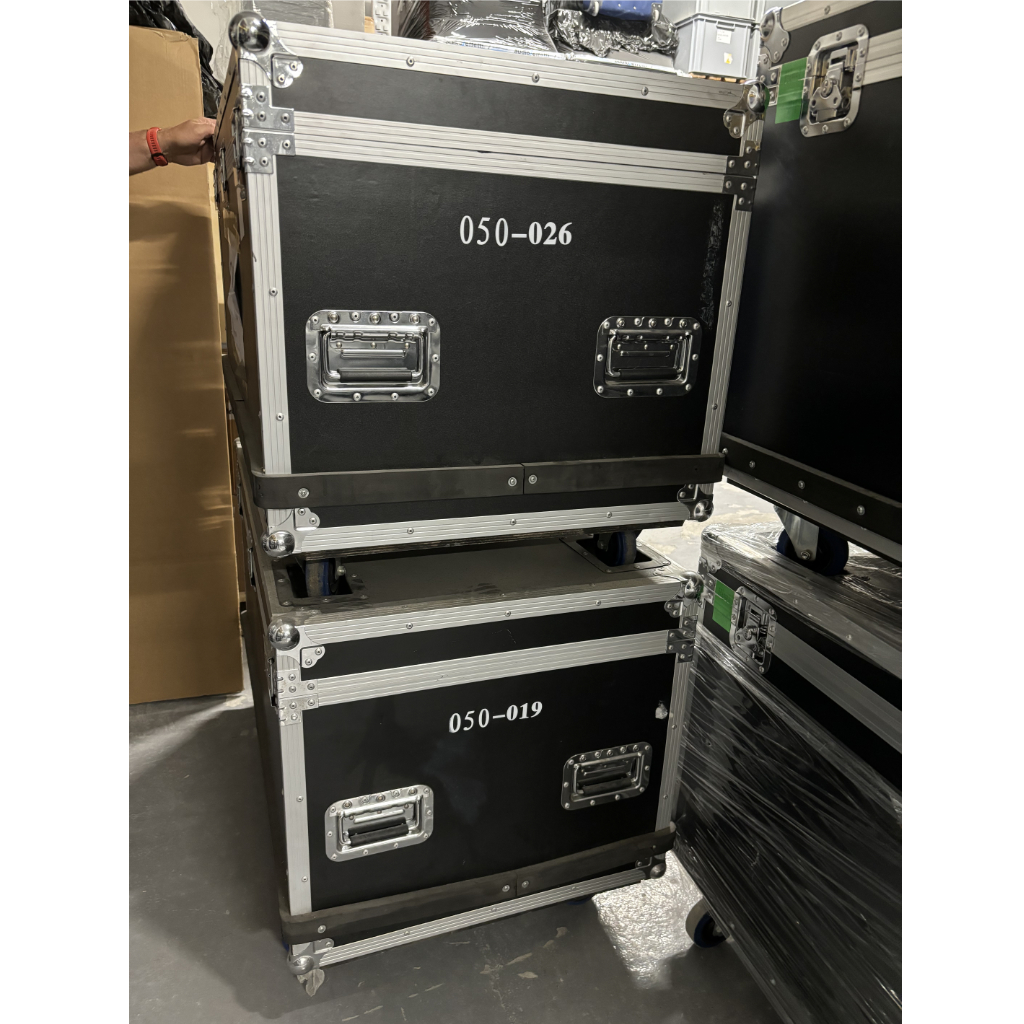

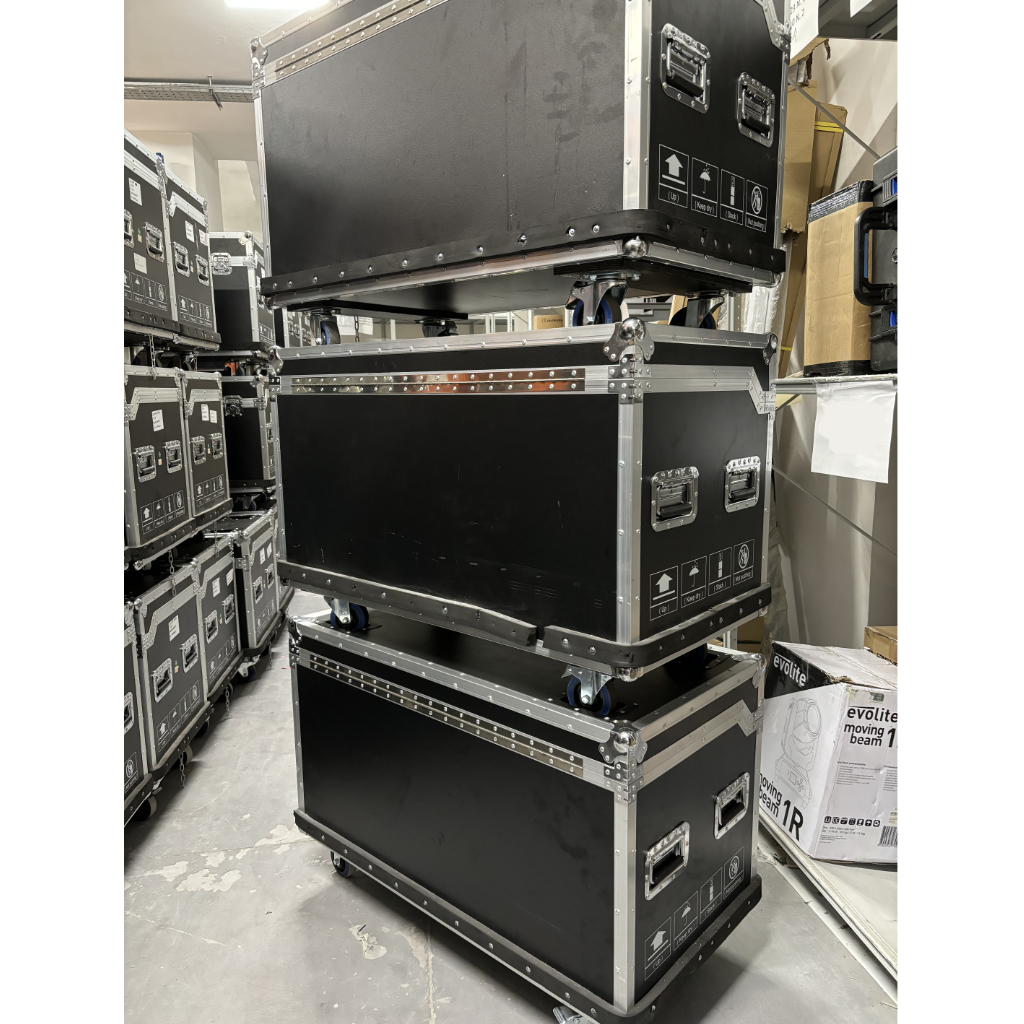

  • 16x flightcases
• Available from: 2025-06-30
• Brand: Yes Tech
• Specifications as below:-
  • LED: SMD2020 black LED
  • Encapsulation: Nationstar
  • Pixel pitch: 3.9 mm
  • IC: MBI5252
  • Pixel configuration: SMD 3-in-1
  • Module quantity per cabinet（W x H）: 2 x 2
  • Cabinet resolution（W x H）: 128 x 128
  • Cabinet size: 500 x 500 x 73 mm
  • Cabinet area: 0.25 m2
  • Weight : 5.7 kg/cabinet
  • IP grade: IP50
  • White balance brightness: 800 – 1200 nit
  • Horizontal viewing angle: 150°
  • Vertical viewing angle: 120°
  • Power consumption: max. 480 W/m2 / average 160 W/m2
  • Working voltage: 100 – 264 VAC 50/60 Hz
  • Driving method: constant drive
  • Scanning method: 1/16 s
  • Refresh frequency: ≤ 3840 Hz
  • Brightness adjustment: brightness of R, G, B 256 colors adjustable by software
  • Life span: > 100,000 h
  • Average no failure time: > 10,000 h
  • Working temperature: -20 to 50 ℃
  • Working : 10 to 90% RH (no condensation)
  • Communication mode: CAT5
  • Communication distance: UTP transmission distance 100 m, maximum 130 m (multimode fiber 500 m, single mode fiber 150 km optional)
  • Connection method: Synchronized with computer; if TV, DVD / VCD player, VCR, etc., a video processor is needed
  • Certification: CE, CCC, ISO, TUV, ETL
