Used Martin Audio Blackline F15+

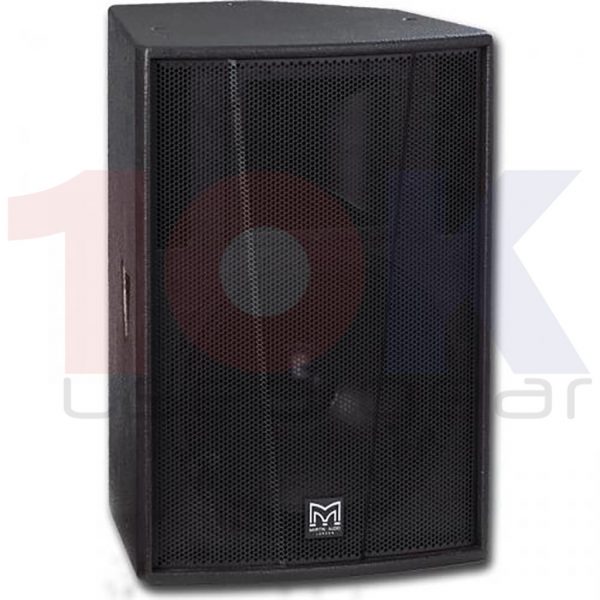

Martin Audio Blackline F15+

Compact, two-way passive system

• Wide-bandwidth system
• User rotatable 80 ̊ x 50 ̊ horn
• Top hat fitting for speaker stand mounting
• 1.4” (35mm) exit compression driver

• Live club performance
• High powered stage monitoring
• Club installs

Extended frequency response is provided by a new 15” (380mm) LF driver and a new 1.4” (35mm) exit compression driver mounted on a rotatable 80 ̊ x 50 ̊ constant directivity HF horn.

The new LF driver features a tough, water resistant cone and a lightweight, high BL, neodymium motor system with inside/outside coil windings for improved heat transfer. An aluminium demodulating ring reduces distortion and improves midrange clarity at high levels and increased excursion is available via a triple roll surround and deep motor structure.

The new HF driver utilises a titanium diaphragm with controlled break-up modes for improved sonic performance at high frequencies and the crossover design and LF cone profile have been optimised to match the directivity of the HF horn and LF section through the crossover region.

Martin Audio Blackline F15+ ergonomic design and rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height, whilst its multi-angle birch ply cabinet allows it also to be used as a high power floor monitor. Its twelve M8 inserts make a variety of horizontal or vertical mounting methods possible.

The F15+ comes with a top hat fitting for speaker stand mounting. This fitting can also be used as a pole socket when the F15+ is used with, for instance, a Blackline S18+ subwoofer.
