Used Martin Maxxyz Wing
Used Martin Maxxyz Wing units offer a modular system extension for the Maxxyz lighting console, adding full playback capabilities, motorized faders and customizable LCD buttons for direct console access. Available second-hand, the Maxxyz Wing connects via USB to a Maxxyz or PC and supports operation on either side of the main console. Scroll down to browse the used Martin Maxxyz Wing listings currently available.
No listings currently in stock. This page stays live — check back or register interest.
0 listed right now — list yours to the buyers searching this model.
Get an email when a new Martin Maxxyz Wing is listed.
Martin Maxxyz Wing specifications
| Brand | Martin |
| Segment | Lighting |
About the Martin Maxxyz Wing

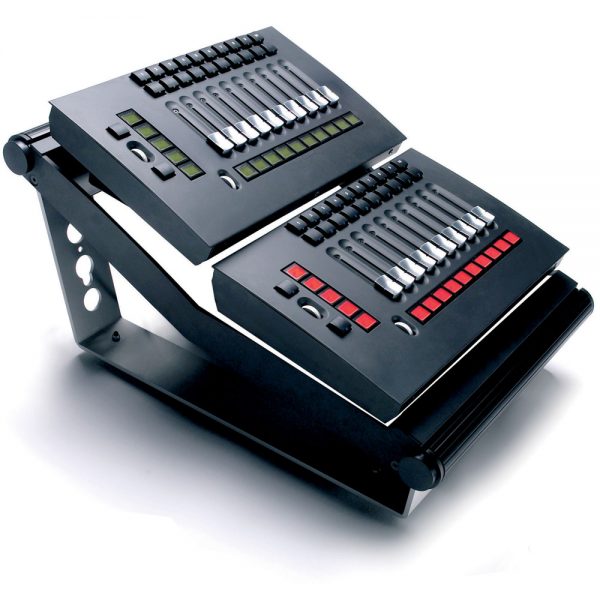

The Martin Maxxyz Wing is a console extension system designed to expand the functionality of the Maxxyz platform by providing additional direct access and customization options. Its modular design supports future expansion, and up to 16 Playback Modules can be connected per console. The unit features 10 motorized playback faders, each paired with a dynamically labeled LCD button and two function-assignable buttons, along with 20 conventional buttons, 5 LCD bank selection keys, a jog wheel and bank nudge keys. Connectivity includes an RJ-45 wing I/O port, USB for Maxxyz PC connection, an XLR desk lamp output and a 3-pin IEC power connector. The unit accepts AC power from 100 to 240 V at 50/60 Hz and measures 440 x 610 x 290 mm in its frame-only configuration.
Martin Maxxyz Wing — buyer FAQs
What is the Martin Maxxyz Wing and what does it do?
The Martin Maxxyz Wing is a modular console extension system that expands the functionality of the Maxxyz lighting console by adding more direct access and customization options. It provides full playback capabilities through 10 motorized faders, each with a dynamically labeled LCD button and two function-assignable buttons, plus 20 conventional buttons, 5 LCD bank selection keys and a jog wheel for bank scrolling.
How many Maxxyz Wing units can be connected to a single console?
Up to 16 Playback Modules can be connected per console, giving operators a substantial expansion of hands-on playback control. The wing connects to a Maxxyz console or a PC via USB, with an RJ-45 port handling wing I/O, and its smart physical design allows it to be positioned on either the left or right side of the main console.
What connections and power requirements does the Maxxyz Wing need?
The Maxxyz Wing connects to a Maxxyz console or PC via USB, with an RJ-45 port for wing I/O. It also has an XLR desk lamp output and a 3-pin IEC power connector. Power input accepts 100 to 240 V AC at 50/60 Hz, making it compatible with mains supplies across most territories without a separate converter.
Who makes the Maxxyz Wing and where does it fit in their product range?
The Maxxyz Wing is made by Martin Professional, a Danish entertainment lighting manufacturer known for automated moving heads, LED fixtures and control products for concerts, theatre, television and architectural applications. The Wing sits within the Maxxyz control platform as a dedicated hardware extension, designed specifically to expand the playback capabilities of the Maxxyz console rather than function as a standalone product.
What should I check when buying a used Martin Maxxyz Wing?
Verify that the motorized faders move freely and return to position correctly, that the LCD buttons display text and respond to input, and that the USB and RJ-45 ports are undamaged. Confirm the unit includes its IEC power cable. Used configurations may vary in age and condition, both of which affect price. Listings on this page include condition details, and purchases carry a 21-day warranty covering major functional faults. Full guidance is at the 10K Used buying guide at https://www.10kused.com/used-av-equipment-guide/.
