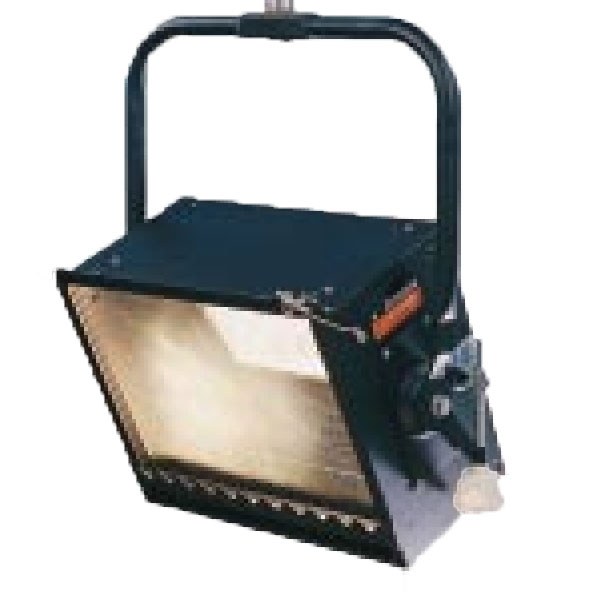

Used Strand Iris Single Cell Cyc Lighting Fixture
Used Strand Iris Single Cell Cyc Lighting Fixture units are top-mounting cyclorama luminaires designed to evenly illuminate cycloramas up to 23 feet high, delivering high-intensity, exceptionally even beam distribution suited to TV studios, motion picture sound stages and theatrical applications. Browse the second-hand Strand Iris Single Cell Cyc listings available on 10K Used by scrolling down to find the right unit for your production environment.
No listings currently in stock. This page stays live — check back or register interest.
0 listed right now — list yours to the buyers searching this model.
Get an email when a new Strand Iris Single Cell Cyc Lighting Fixture is listed.
Strand Iris Single Cell Cyc Lighting Fixture specifications
| Brand | Strand |
| Segment | Lighting |
About the Strand Iris Single Cell Cyc Lighting Fixture
The Strand Iris Single Cell Cyc Lighting Fixture is a top-mounting cyclorama light engineered to evenly illuminate cycloramas up to 23 feet high, with maximum illumination targeted at performer head height of 6 feet. Units should be installed on 8-foot centres and tilted 20 degrees from vertical, relying on the overlap of light from adjacent fixtures to achieve consistent coverage. The fixture accepts a 189mm linear R7s lamp base with a maximum lamp load of 1500W per compartment, and operates on 120/220V at 50/60Hz. It carries an IP20 rating, a maximum operating ambient temperature of 110 degrees Fahrenheit and complies with EN60598 2-17. The black finish is intended to blend with studio ceilings, and the range includes split-yoke versions for multi-cell configurations.
Strand Iris Single Cell Cyc Lighting Fixture — buyer FAQs
What is the Strand Iris Single Cell Cyc Lighting Fixture designed to do?
The Strand Iris Single Cell Cyc is a top-mounting cyclorama luminaire engineered to evenly illuminate cycloramas up to 23 feet high, with maximum illumination targeted at performer head height of 6 feet. It achieves consistent coverage by overlapping light from adjacent units, which should be installed on 8-foot centres and tilted 20 degrees from vertical. Typical applications include TV studios, motion picture sound stages and theatrical cycloramas.
What lamp does the Strand Iris Single Cell Cyc use and what are its electrical ratings?
The fixture accepts a 189mm linear lamp on an R7s base, with a maximum load of 1500W per compartment. It operates on 120/220V at 50/60Hz. Each compartment is fitted with its own 3-foot power cable. The unit carries an IP20 rating and a maximum operating ambient temperature of 110 degrees Fahrenheit, and it complies with EN60598 2-17.
Who makes the Strand Iris Single Cell Cyc and where does it sit in the range?
Strand Lighting is a theatre and television lighting brand founded in 1914 in London, historically known for stage and studio fixtures, dimming systems and control consoles. The Iris Single Cell is part of Strand's top-mounting cyclorama lighting range, which includes multi-cell configurations such as the Iris 2 and Iris 4, the latter available to special order with a 9-pin connector for 4-circuit operation.
What should I check when buying a used Strand Iris Single Cell Cyc Lighting Fixture?
Check that the R7s lamp holder and reflector are undamaged and that the 3-foot power cable is intact with no signs of heat stress near the connector. Confirm the supply voltage configuration (120V or 220V) matches your installation. Verify the black finish for any significant dents that could affect mounting. Every listing on 10K Used carries a 21-day warranty covering major functional faults; full details are in the buying guide at 10kused.com/used-av-equipment-guide/.
