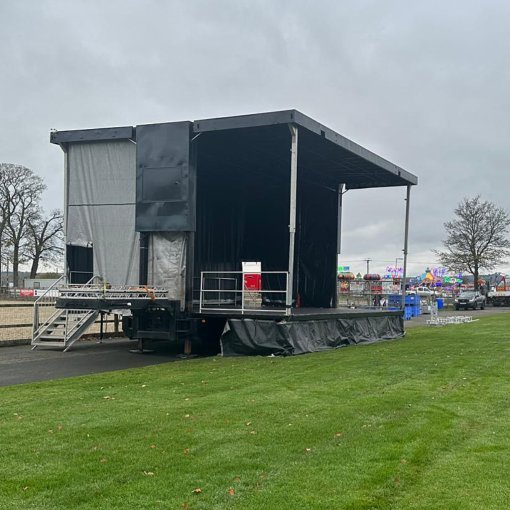

10m x 8m mobile trailer concert stage

Description

’10m x 8m mobile trailer concert stage’

• Good condition.
• Price shown is for the entire trailer
• Artic based system, tractor unit needed to pull it
• Available from: 2025-08-13
• Trailer Specifications:-
  • Width: 8’-2” / 2.49m
  • Length:  34’-2” / 10.41m
  • Height 13’-6” / 4.12m
  • Trailer’s weight:  21934lbs/ / 9949kg
  • Static load on axles: 19934lbs / 9042kg
  • Allowed load on cargo: 346lbs / 157kg
  • Cargo space: 5’11”x8’-0”x32’0” (1515ft3) / 1.8x244x9.75m (42.82m3)
• OVERALL DIMENSIONS ( OPEN STAGE )
  • Depth: 27’-6 (33’-6” with FOH) / 8.38m (10.21m with FOH)
  • Width: 34’-2” (46’-2” with lateral supports) / 10.41m (14.07m with lateral supports)
  • Height: 21’-0” to 22’-6” (23’-6” with blocks) / 6.4 to 6.86m (7.16m with blocs)
• STAGE DIMENSIONS
  • Floor dimensions: 32’-0” x 24’-11” / 9.75 x 7.60m
  • Floors height from ground: 3’6” to 5’-0” (6’-0” with blocks) / 1.07 to 1.52 (1.83 with blocks)
  • Clearance under truss: 15’-6” / 4.72m
  • Clearance under roof: 17’-6” to 17’9” / 5.33 to 5.41m
• OTHER SPECIFICATIONS
  • Floor surface: Plywood on steel
  • Floor capacity: 100lbs/ft2 / 5 kpa
  • Roof surface: Fibreglass bound on steel
  • Front supports: (FOH) 6’-0” / 1.83m
  • Lateral supports: 6’-0” / 1.83m
  • Maximum load/roof: 24000lbs / 10886kg *
  • Maximum load/FOH:  750lbs / 340kg *
  • Maximum load/inside supports: 500lbs / 227kg *
  • Maximum load/lateral supports: 500lbs / 227kg *
  • Maximum load/central truss: 7500lbs / 3402kg *
  • Maximum load/end points: 1323lbs / 600kg *
  • Wind load: 60 m/h / 97km/h)
  • Uplift: 15lbs/ft2 / 75 kpa
  • Motor: Gaz motor Honda GX120 5.5CV
  • Set-up time: 5 hours – 4 technicians
  • Transport: Tractor trailer truck with fifth wheel
  • Canvas (back and sides): Vinagard 14 oz , black
  • Canvas openings (doors): 3, 6’x8’ / 1.83 x 2.44m
  • Canvas openings (wind traps): 0
  • Skirting: Novathene TG , black
  • Stairs: 36” / 914 mm width
