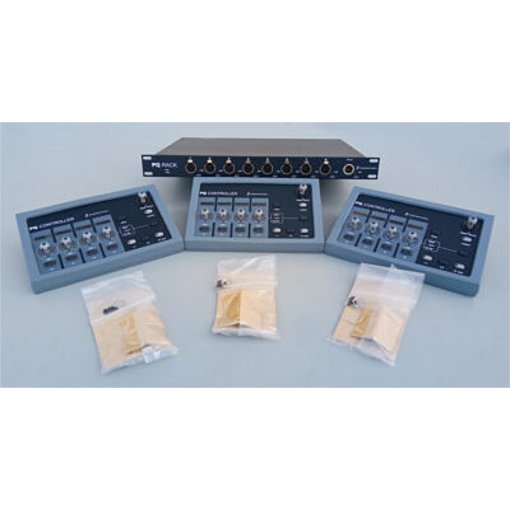

Avid Digidesign PQ System

Much of an event’s success, whether it’s a live concert, worship service, or theater production, hinges on how satisfied the artists are with their monitor mixes. For professionals who demand the highest level of audio quality and flexibility in personal monitoring, the Avid Personal Q (PQ) system enables both the artist and engineer to work in tandem to achieve optimal monitor mixes.

A Completely Integrated System

Designed for use with D-Show or Profile Systems configured with a Stage Rack, the Avid PQ system consists of at least one and up to eight PQ Controllers, which artists use to remotely control their own individual stereo monitor mixes, and a PQ Rack to which the controllers all connect via 4-pin XLR cables. The PQ Rack connects directly to the Stage Rack through a PQ Link cable, and carries control data to and from the D-Show or Profile console and VENUE software, enabling engineers to easily select and assign a wide array of signal sources for the artist to control—up to 12 different sources per controller.

Because audio is fed out of the Stage Rack through the analog or digital 24-bit/48 kHz XLR outputs, PQ makes it easy to integrate in-ear monitor (IEM) receivers for artists who don’t want to be tethered to a mixing station or traditional powered monitors, allowing for the ultimate in flexibility and remote control. Best of all, the high-quality PQ outputs ensure that artists get superior sound quality for the ultimate onstage experience.

True Tandem Control

Unlike single-ended systems that only route signals to the artist for localized mixing and monitoring, the PQ system enables the engineer to evaluate the same remote mix from his or her mix location, and assist the artist as needed. While the artist controls his or her mix using the PQ Controller, the engineer can solo the remote mix directly from the D-Show or Profile console and make any necessary adjustments. This allows both the artist and engineer to evaluate and mix common audio from discrete locations to create outstanding monitor mixes, and ensures that both are listening to and adjusting the same mix at all times.

Both the artist and engineer can solo, meter, and mix all available PQ sources, including adjusting levels and pan settings. Engineers can also store and recall settings using VENUE software on a per-show or song-by-song basis, if desired. This gives the artist the highest level of repeatability with the least amount of effort, and makes sound checks and shows easier and more consistent than ever before. The PQ system also offers a call button that the artist can initiate to get the engineer’s attention in the event that the engineer is occupied or out of direct eye contact.

In addition, the artist or engineer can lock the PQ Controller out at any time to prevent additional or accidental changes.
