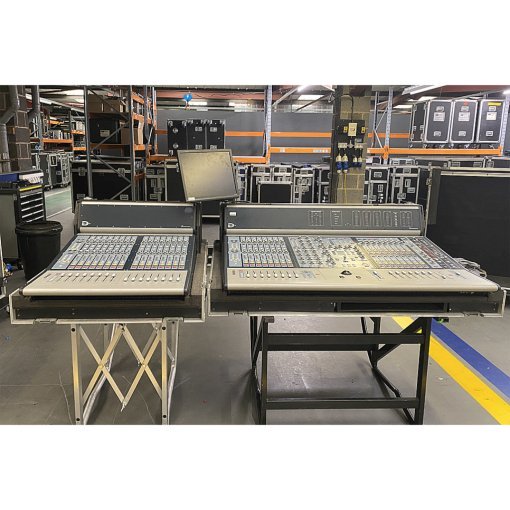

Avid-Digidesign VENUE D-Show System Package

Avid VENUE

Avid VENUE is a state-of-the-art live sound production environment comprised of high-quality components that work together as one system.

Avid VENUE Systems: VENUE D-Show, VENUE Profile, VENUE Mix Rack, VENUE SC48 Remote, VENUE SC48

Main features and specification: Avid VENUE D-Show System

• Offers the greatest I/O and console expandability
• D-Show® Main Unit (8 input and output faders)
• D-Show Sidecar (16 faders; expandable to 56 faders with two additional Sidecars)
• Stage Rack with 48 mic/line inputs and 8 outputs (expandable to 48 outputs)
• FOH Rack with three DSP Mix Engine Cards (expandable to five, plus other options)
• ECx Ethernet Option Card
• VENUE software
• VENUEPack 4 bundle
• Integrated trackball and monitor mount (monitor sold separately)
• All necessary cables and accessories

Avid VENUE Profile System

• Offers great I/O expandability and a compact console
• Profile console (24 input faders, 8 output faders)
• Stage Rack with 48 mic/line inputs and 8 outputs (expandable to 48 outputs)
• FOH Rack with three DSP Mix Engine Cards (expandable to five, plus other options)
• ECx Ethernet Option Card
• VENUE software
• VENUEPack 4 bundle
• Mounting brackets for trackball and monitor (trackball and monitor sold separately)
• All necessary cables and accessories

Avid VENUE Mix Rack System

• Offers customizability in a more affordable package
• Profile console (24 input faders, 8 output faders)
• Mix Rack with 48 mic/line inputs, 16 outputs
• Two DSP Mix Engine Cards
• Integrated ECx Ethernet Option (expandable to 32 outputs and three DSP Mix Engine Cards, plus other option cards and interfaces)
• VENUE software
• VENUEPack 4 bundle
• Mounting brackets for trackball and monitor (trackball and monitor sold separately)
• All necessary cables and accessories

Avid VENUE SC48 Remote System

• Offers great portability, affordability, and remote I/O
• SC48 console (26 faders: 16 input, 8 output, 1 Flex Channel, 1 Mains; 16 mic/line inputs; analog outputs expandable to 32 total with optional card; two DSP Mix Engine Cards; built-in Pro Tools FireWire interface; local I/O; remote computer control)
• Stage 48 remote box (32 mic/line inputs, 16 outputs)
• Ethernet Snake Card (Ethernet AVB connectivity)
• VENUE software
• Pro Tools software
• VENUEPack 4 bundle
• Mounting brackets for trackball and monitor (trackball and monitor sold separately)
• All necessary cables and accessories

Avid VENUE SC48

• The most affordable and portable entry into VENUE
• SC48 console (26 faders: 16 input, 8 output, 1 Flex Channel, 1 Mains; 48 mic/line inputs; 16 outputs, expandable to 32 with optional card; two DSP Mix Engine Cards; built-in Pro Tools FireWire interface; local I/O; remote computer control)
• VENUE software
• Pro Tools software
• VENUEPack 4 bundle
• Mounting brackets for trackball and monitor (trackball and monitor sold separately)
• All necessary cables and accessories

Did not find what you need? Send us an enquiry _______________________________

Glossary: Avid VENUE D-Show, Avid VENUE Profile, vid VENUE Mix Rack, Avid VENUE SC48 Remote, Avid VENUE SC48, Avid-Digidesign

Avid-Digidesign VENUE D-Show

Used Avid-Digidesign VENUE D-Show systems are professional digital mixing desks built for live sound applications, offering expanded input/output capabilities through integration with VENUE stage and FOH rack components. Second-hand VENUE D-Show setups are a trusted choice among touring sound engineers and venue operators alike. Scroll down to browse the used VENUE D-Show listings currently available. The Avid-Digidesign VENUE D-Show is a professional digital mixing system designed for live sound production at concerts and events. The system centres on a main mixing surface, which can be paired with a Sidecar unit to expand control and input/output capabilities. A typical VENUE D-Show configuration includes a Stage Rack with multiple line outputs, an FOH Rack housing DSP Mix Engines, and support for plugins such as Venuepack Pro. The platform runs dedicated system software and is widely used by professional sound engineers in touring and installed environments.
