Chipshow C-Shine P2.97mm Outdoor 20sqm LED Package

Description

Introducing the Chipshow C-Shine P2.97mm Outdoor LED Package, a high-performance video wall solution ideal for concert touring and corporate events. This impressive package features 81 LED panels, each measuring 500x500mm, providing a total screen area of 20.25 sqm. With a pixel pitch of just 2.97mm and a resolution of 168×168 dots, this display delivers stunning visuals and vibrant colours.

Designed for outdoor use, it boasts a remarkable brightness of 4500 nits, ensuring visibility in all lighting conditions. The robust cast aluminium construction guarantees durability, while the IP54 rating offers protection against dust and moisture. The high refresh rate of 3840Hz and uniform brightness of less than 3% enhance the viewing experience, making it suitable for various applications.

This package comes complete with flight cases for easy transport and includes hanging bars and spare parts, ensuring everything you need is at your fingertips. Enjoy peace of mind with our standard 21-day warranty.

Technical Spec:-
Pixel Pitch 2.971mm – OUTDOOR Pixel Configuration 3in1
Module Resolution 84dots X 84dots
Module Pixels 7,056dots
Module Size 25025016mm
Cabinet Size (W×H×D) 500(W)×500(H)×90(D)mm
Cabinet Resolution 168×168Dots
Module Quantity 2×2pcs
Cabinet Pixels 28,224dots
Pixel Density 112896 Dots/㎡
Average Power Consumption 270W/m2
Max. Power Consumption 850W/m2 Material Cast aluminum

Screen Area – Your screen size: 20.25m2 – 81 cabinets of 500×500mm in total Brightness 4500/㎡
Driving Method 1/14 scan
View Angle Horizontal 120° Vertical 120°
Optimal Viewing Distance 2–30M
Fresh Frequency 3840Hz
Frame Frequency 60Hz
Defects Rate ≤0.00001
Driving IC ICND2153S
MTBF >10,000 hours
Life span ≥100,000 hours
Module Display Brightness Uniformity <3%
Earth Leakage Current <3mA
Temperature-operating -20℃ to +50℃
Protective Grade Before/After: IP54
Humidity-operating 10%–95%
Operating system: Nova A5S
Hanging bars included
Spares included.

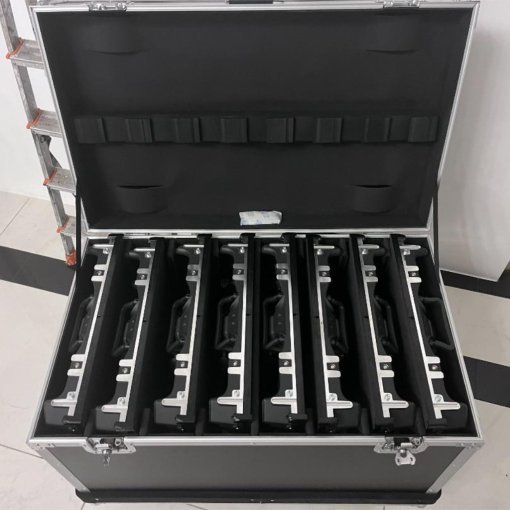

Flight cases included.
