Used Anytronics Lightflo 3×4 UV
Anytronics Lightflo 3x4 UV Lightweight DMX controlled dimmable UV fluorescent black light specifically designed for effects lighting.
No listings currently in stock. This page stays live — check back or register interest.
0 listed right now — list yours to the buyers searching this model.
Get an email when a new Anytronics Lightflo 3×4 UV is listed.
Anytronics Lightflo 3×4 UV specifications
| Brand | Anytronics Limited |
About the Anytronics Lightflo 3×4 UV

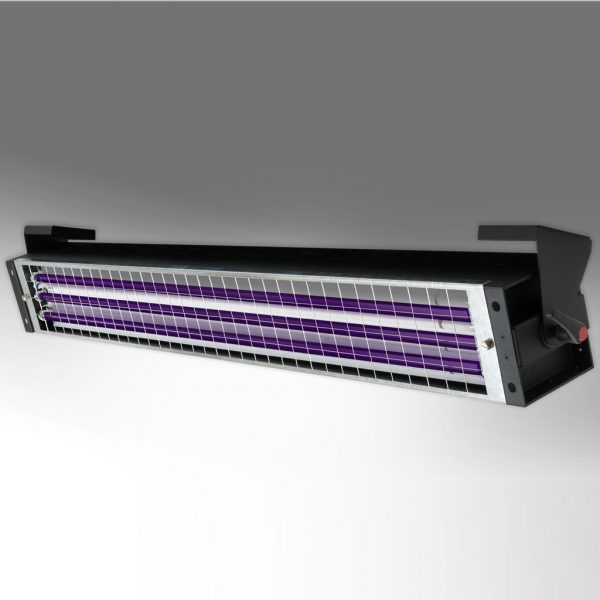

Anytronics Lightflo 3x4 UV
- Efficient high output 108W UV effects light
- High frequency ballasts are compatible with high speed filming
- Easy to rig and handle
- Right angled fixing brackets at each end for floor / wall mounting
- 1.5mm wire safety screen attached to grille
- DMX control
- DMX inputs protected to DMX-512 A
- DMX in and through connections on XLR
- Thumb wheel DMX address setting without power connected
- PowerCon in and through power connectors
Specifications
Weight - 10.2kg
Dimensions - 1444mm (W) x 150mm (H) 130mm (D)
Horizontal Mounting - 28mm TV spigot or wall / ceiling mounting bracket
Lamp Type - T8 linear fluorescent
Lamp Protection - Galvanised steel safety mesh with 1.5mm polycarbonate screen
Ballast Frequency - 50kHz to 100kHz
Dimming Range - 1% to 100%
Power Sockets - 16A PowerCon male input plus through socket for daisy chaining up to 8 units
Power Supply - 200 to 250V AC 50/60Hz single phase
Typical Earth Leakage Current - <3mA
Maximum Power Consumption - 80W
Power Factor - >0.98
DMX Connectors - 1 x male + 1 x female 5pin XLRs + 2 x RJ45 sockets
DMX Addressing - Address range 1 – 512, set by 3 push button BCD switches
Maximum Ambient Temperature - ta 35°C
Compliance
Complies with - EN60598 and EN60598-2-17, and relevant parts of EN61000-6-3 (EN55015)
