Used High End x.Spot Xtreme
Lighting & Effects
No units in stock right now — register interest

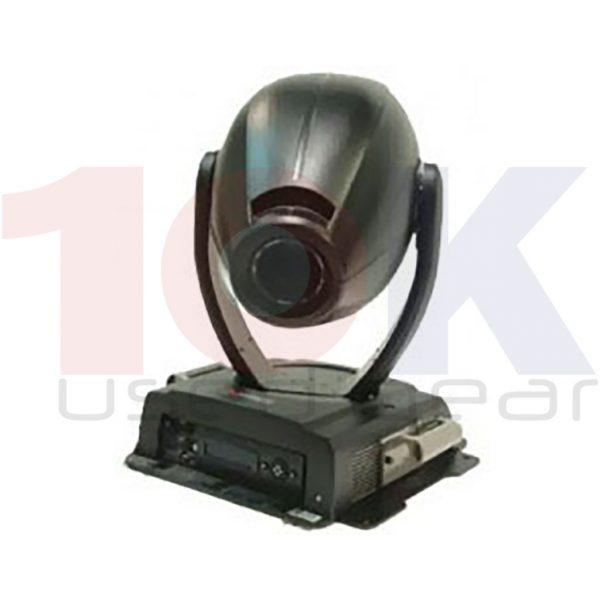

High End x.Spot Xtreme is a moving head lighting effects luminaire with multiple advances in automated lighting technology.
No listings currently in stock. This page stays live — check back or register interest.
Got a High End x.Spot Xtreme to sell?
0 listed right now — list yours to the buyers searching this model.
List my High End x.Spot Xtreme
0 listed right now — list yours to the buyers searching this model.
Notify me of the next High End x.Spot Xtreme listing!
Get an email when a new High End x.Spot Xtreme is listed.
Get an email when a new High End x.Spot Xtreme is listed.
High End x.Spot Xtreme specifications
| Brand | High End |
About the High End x.Spot Xtreme
High End x.Spot Xtreme
Main features and specification for High End x.Spot Xtreme:
- Two zoom lens options with constant aperture and focus tracking while zooming: 2:1 f1.4 6-element zoom lens (15°–30°); 4:1 f2.0 11-element zoom lens (11°–45°)
- 630° Pan and 240° Tilt
- Variable frost
- Mechanical and electronic strobe
- Smooth, linear dimming
- Remote focus
- Independent electronic homing for fixture function groups
- USITT DMX-512 1990 Compatible
- ACN-ready Ethernet connector
- High-resolution optical encoders to monitor position and correct on the fly
- Onboard programming and playback
- TalkBack protocol support for automating remote patching, status updates, etc.
- Large dot matrix display that allows for 2 lines of text and automatically inverts display based on fixture orientation
- Flicker-free, electronic universal power supply (120–230V)(50-60Hz)
- Modular construction for easy upgrading and customizing
- Square base for universal truss mounting
- Easy head removal with clamshell bezels
- Ease of maintenance: modularity; interchangeable driver boards between modules; minimum metric standard tool set
- Six-Wheel Color Mixing Module
- Smooth CMY color mixing
- Six-position dichroic color wheel with five (5) replaceable color filters plus open
- Variable Color Temperature Correction (3000°K –7500°K) through the use of CTO and CTB filters
- Frost wedges on CTO and CTB filters to implement remote three-level beam flatness adjustment
- Dual Rotating Gobo Module
- Two Gobo wheels: Gobo wheel 1 has seven rotating, indexing Lithopatterns glass gobos with stacking capability (plus open); Effects Gobo wheel has rotating, indexing glass effects in seven apertures (plus open); Moire and overlay effects capability on two positions of Gobo wheel 1
- Rotating Gobo and Iris Module
- Gobo wheel 2 has seven rotating, indexing Lithopatterns glass gobos with stacking capability (plus open)
- Variable Iris
High End x.Spot Xtreme luminaire integrates multiple advances in automated lighting technology to give the lighting designer the ultimate hard-edge fixture for professional applications. The modular design includes three user-configurable slots to allow maximum customization and upgradability.
